Stealth Tandem Axle
Ramps & Dovetails
| Standard | Available Options | ||||
| GATES | Rear Slide In Ramps | 77" Fold Down +$115 | 83" Fold Down +$180 | ||
| 77" Bi-Fold +$250 | 83" Bi-Fold +$290 | 60" Side Fold +$310 | |||
| 60" Bi-Fold SIDE +$395 |
Removable Ramp Sides +$460 |
Spring Assist Included Any Gate |
Heavy Gate 11ga +$455 |
||
| DOVETAIL | 24" Steel +$225 | ||||
Top Rail
| Standard |
|
2 3/8" Pipe |
Uprights
| Standard |
2" x 3" x 3/16" Angle |
Tie-Downs
| Standard | Available Options | |||
| TIE-DOWNS |
(4) Stake Pockets / (4) D-Rings |
Tie Down Pckg +$135 |
Extra D-Rings +$40ea |
**Tongue Mount Tool Box +$310 |
Coupler
| Standard | Available Options | ||
2" DEMCO | 2" 5/16" RAM DEMCO | ||
Jack
| Standard |
|
8K Drop Leg Jack |
Tongue
| Standard | Available Options |
4" Channel Wrap | |
Extended Tongue |
Fenders
| Standard |
Tread Plate |
Floor
| Standard | Available Options | |
|
#2 Treated Pine |
Tread Plate |
Shelby Rubber Floor |
Axle
| Standard | Available Options | ||
| (1)3,500lbs Idler / (1) Brake | (2) 3,500lbs Brakes | *(2) 5,200 / (1) Brake | *(2) 5,200 Brakes |
| Tires: 205/75/R15 | 225/75/R15 | ||
Frame
|
4" Channel |
Build Your Own.
You Deserve the best
- Configure Select your size, options, and finishes.
- Submit Send your custom build to a dealer.
- Connect A dealer reaches out with final pricing.
Image shown may include optional features not included in the standard model. *5,200lbs Axle Upgrade includes 5" Channel Frame, Coupler Upgrade, 8K Jack, and 235/80/R16 Tires. No Bi-Fold option on 5,200lb axles. **Top Wind Coupler Jack included on Tongue Mount Tool Box Option. Standard gate height on trailers with a dovetail is 3', with the exception of trailers with 5,200lb axles.

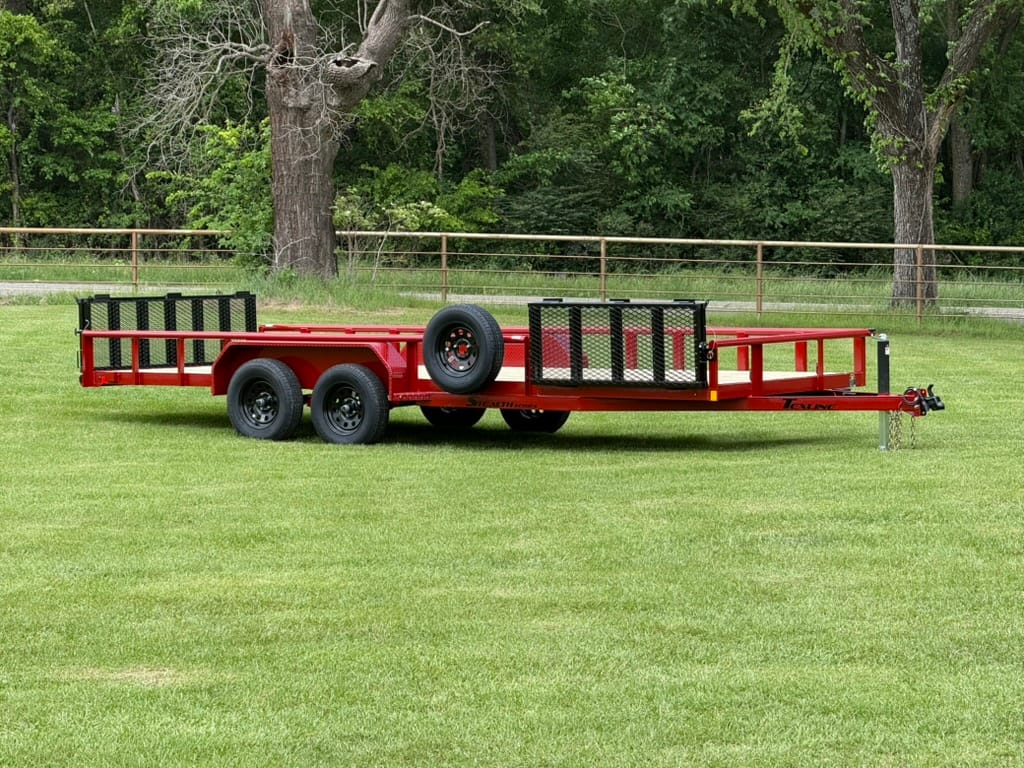

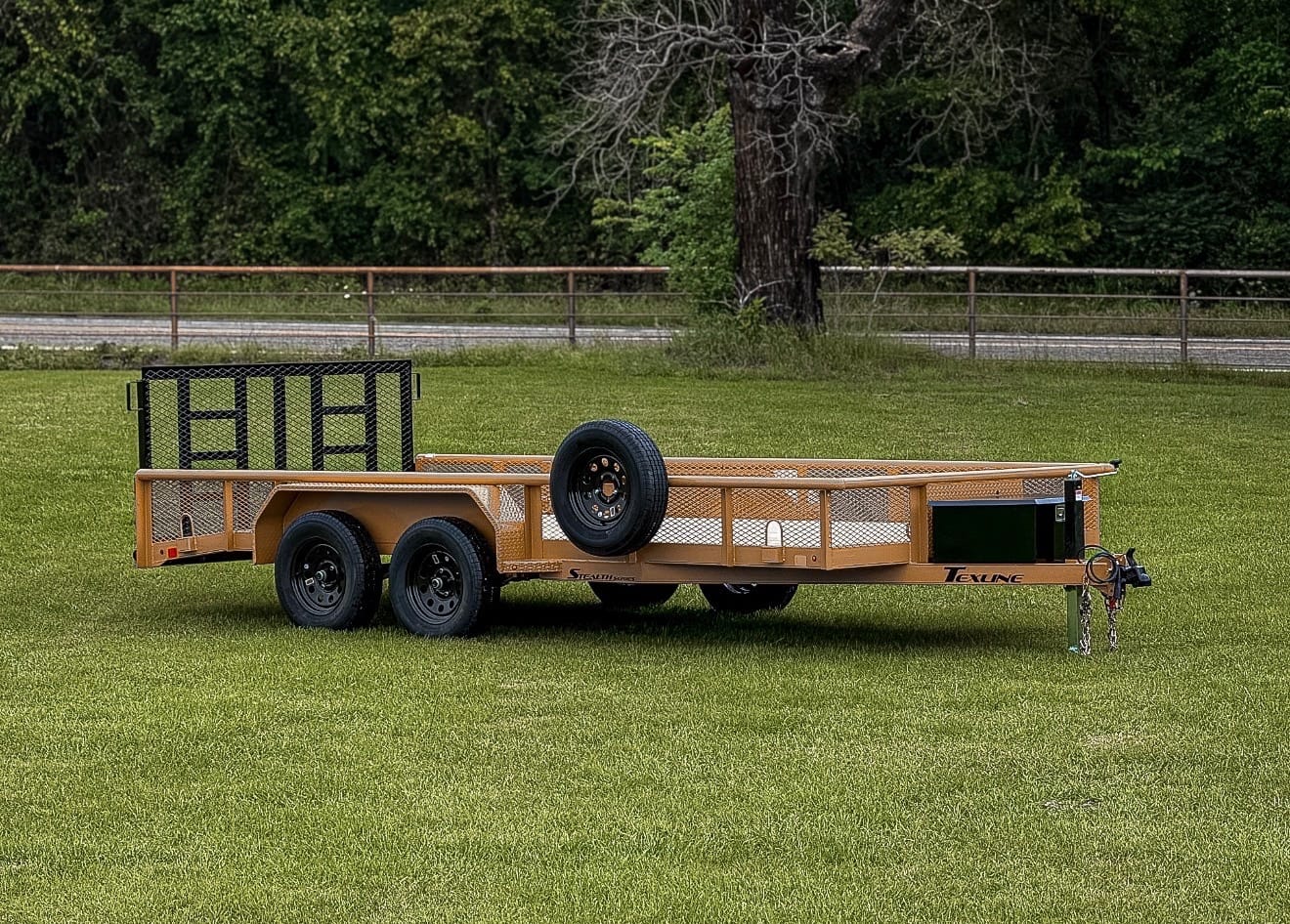

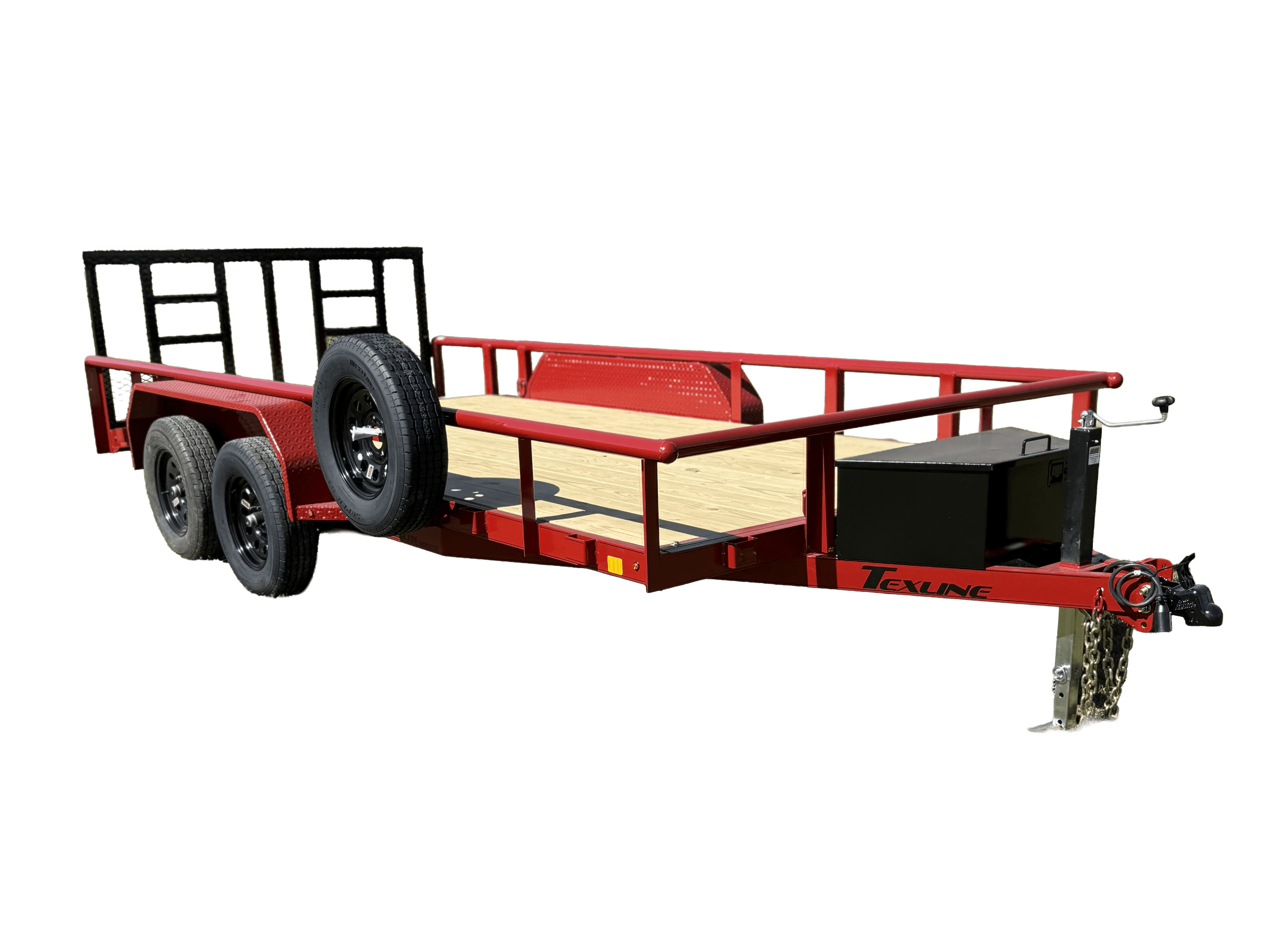

Stealth Tandem Axle Utility
Your Build
Image shown may include optional features not included in the standard model. *5,200lbs Axle Upgrade includes 5" Channel Frame, Coupler Upgrade, 8K Jack, and 235/80/R16 Tires. No Bi-Fold option on 5,200lb axles. **Top Wind Coupler Jack included on Tongue Mount Tool Box Option. Standard gate height on trailers with a dovetail is 3', with the exception of trailers with 5,200lb axles.
