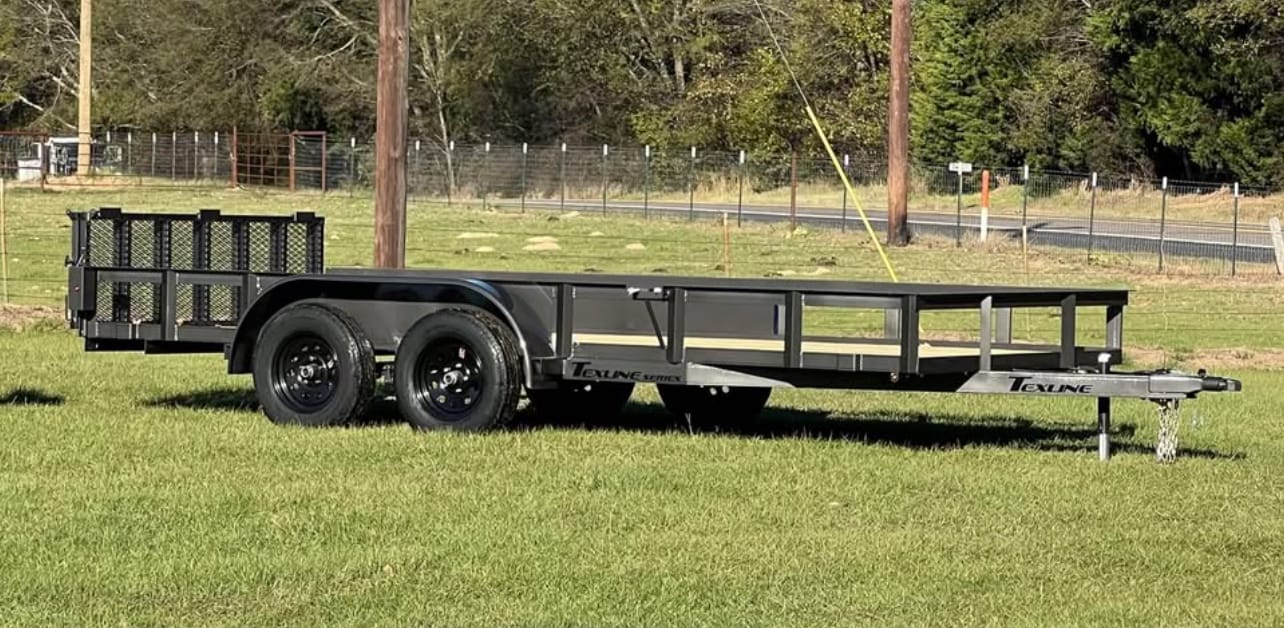

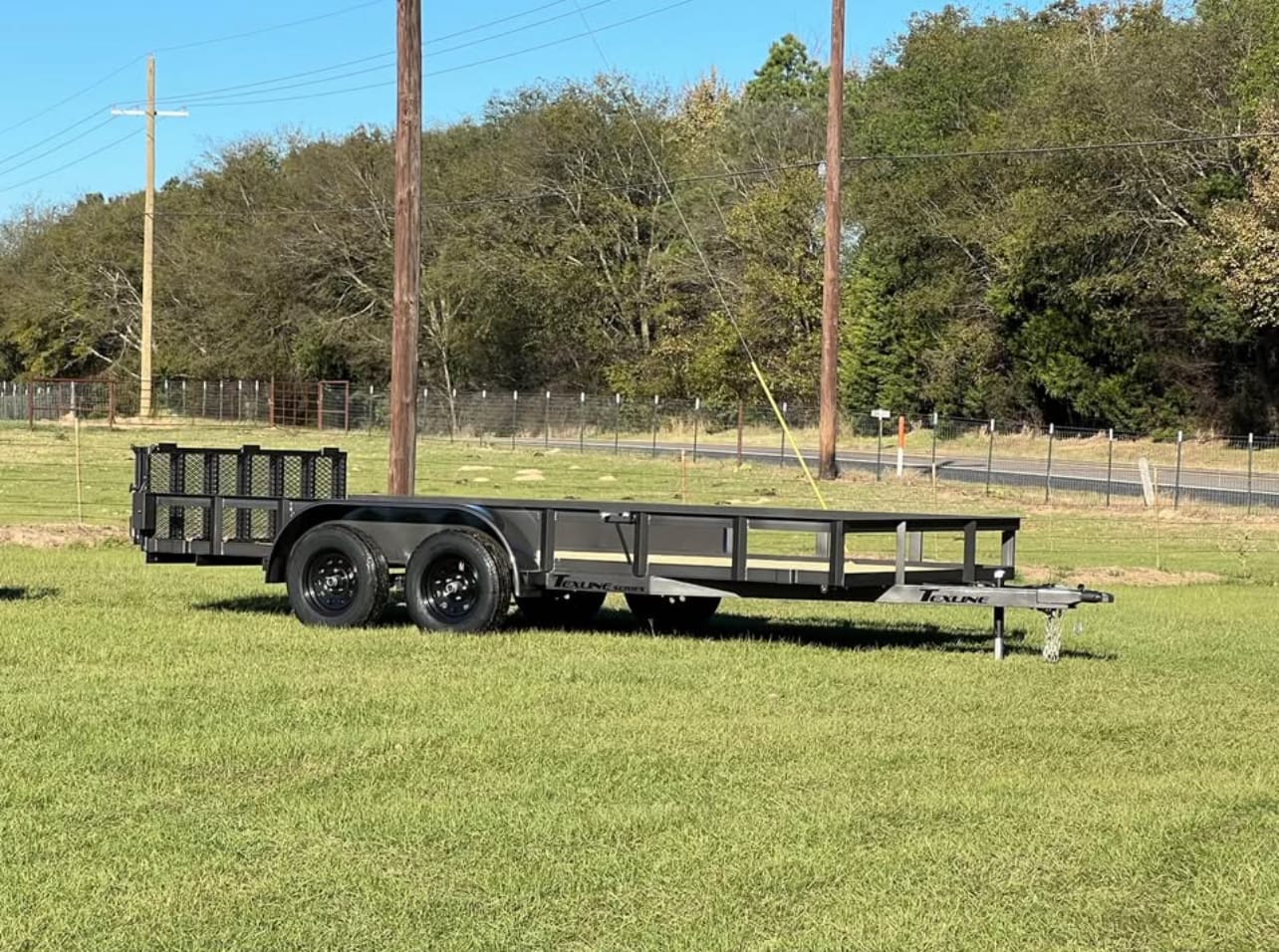

Texline Tandem Axle Utility
Axle
| Standard | Available Options | ||
| (2) 3,500lbs Idler | (1) 3,500lbs Idler / (1) Brake | ||
| Tires: 205/75/R15 | (2) 3,500lbs Brakes | ||
| *(2) 5,200lbs / (1) Brake | |||
| *(2) 5,200lbs Brakes | |||
| Tires: 225/75/R15 | |||
Frame
| Standard | Available Options | ||
2" x 3" x 3/16" Angle | 4" x 3" x 1/4" Angle | ||
Ramps & Dove Tails
| Standard | Available Options | |||
| GATES | Not Included | 77" Fold Down | 83" Fold Down | 5' Slide Ramp |
| 77" Bi-Fold | 83" Bi-Fold | 60" Side-Fold | ||
| 60" Bi-Fold SIDE | Removable Ramp Sides | Spring Assist Any Gate Heavy Spring Gate | ||
Fenders
| Standard | Available Options |
|
Smooth |
Tread Plate |
Uprights
| Standard |
2" x 3" x 3/16" Angle |
Top-Rail
| Standard | Available Options |
|
2" x 3" x 3/16" Angle |
2 3/8" Pipe |
|
2" Sq Tubing |

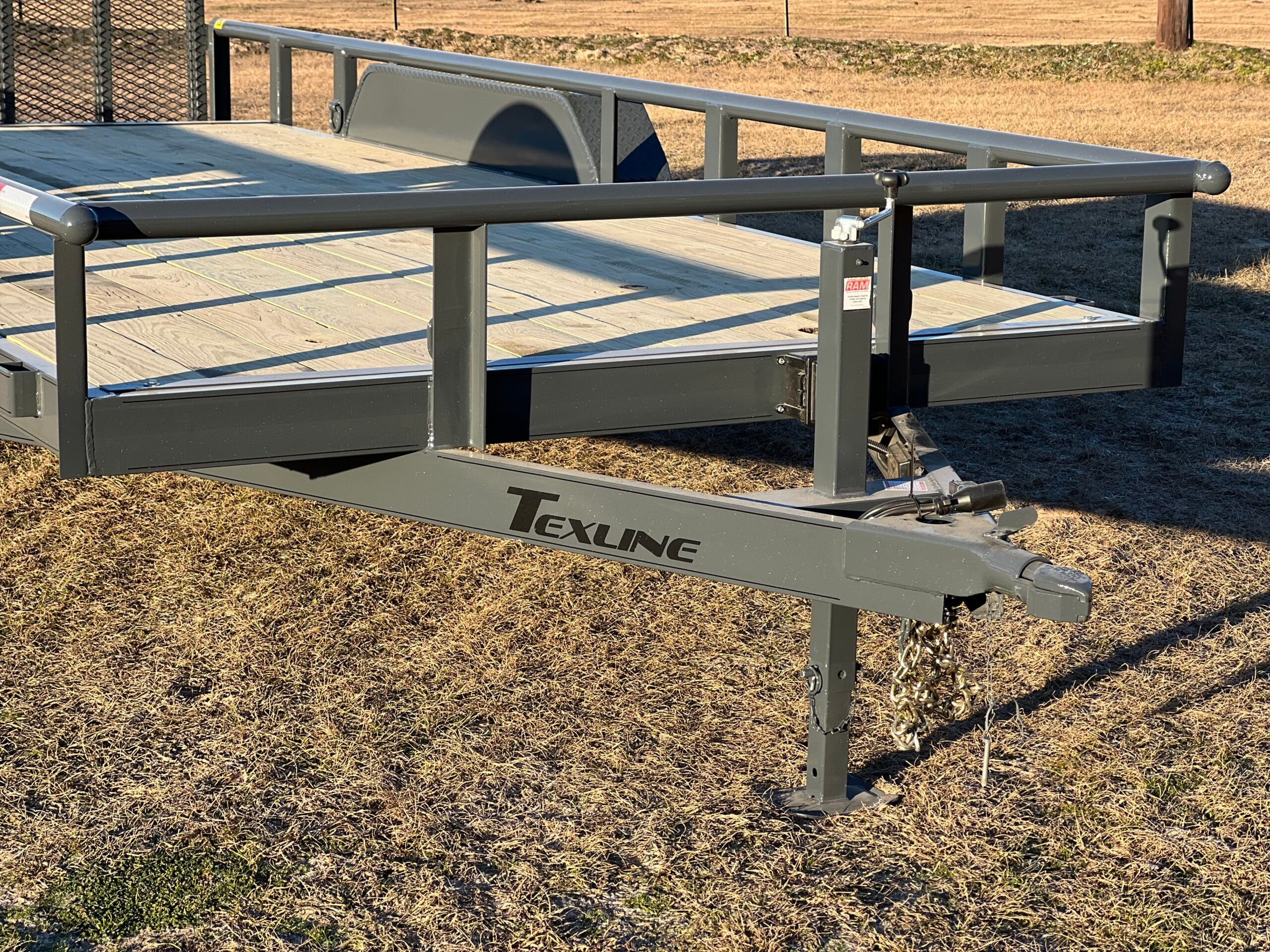

Tongue
| Standard | Available Options |
|
4" Channel Wrap |
Extended Tongue |
Jack
| Standard | Available Options |
5K Swing Jack | 8K Drop Leg Jack |
Coupler
| Standard | Available Options | ||
2" RAM | 2 5/16" RAM | ||
Open Sides
| Standard | Available Options | ||
Fender Height | 24" | 36" | 48" |
Lights
| Standard | Available Options |
|
Rubber Mount LED |
Back Up Light |
Tie-Downs
| Standard | Available Options | ||
(4) Stake Pockets | Extra Pockets | D-Rings | **Tongue Mount Toolbox |

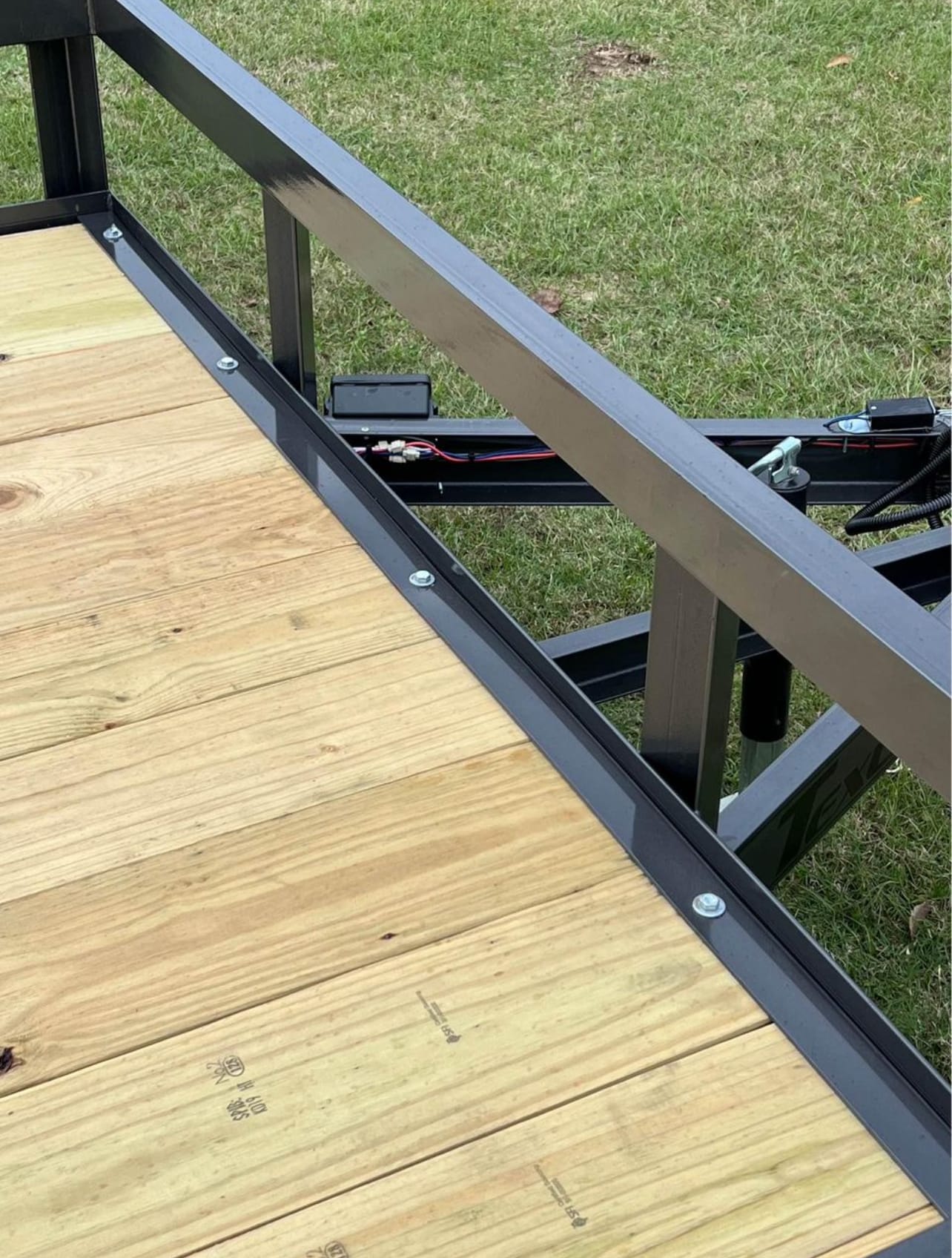

Floor
| Standard | Available Options | ||
#2 Treated Pine | Tread Plate | ||
Build Your Own.
You Deserve the best
- Configure Select your size, options, and finishes.
- Submit Send your custom build to a dealer.
- Connect A dealer reaches out with final pricing.

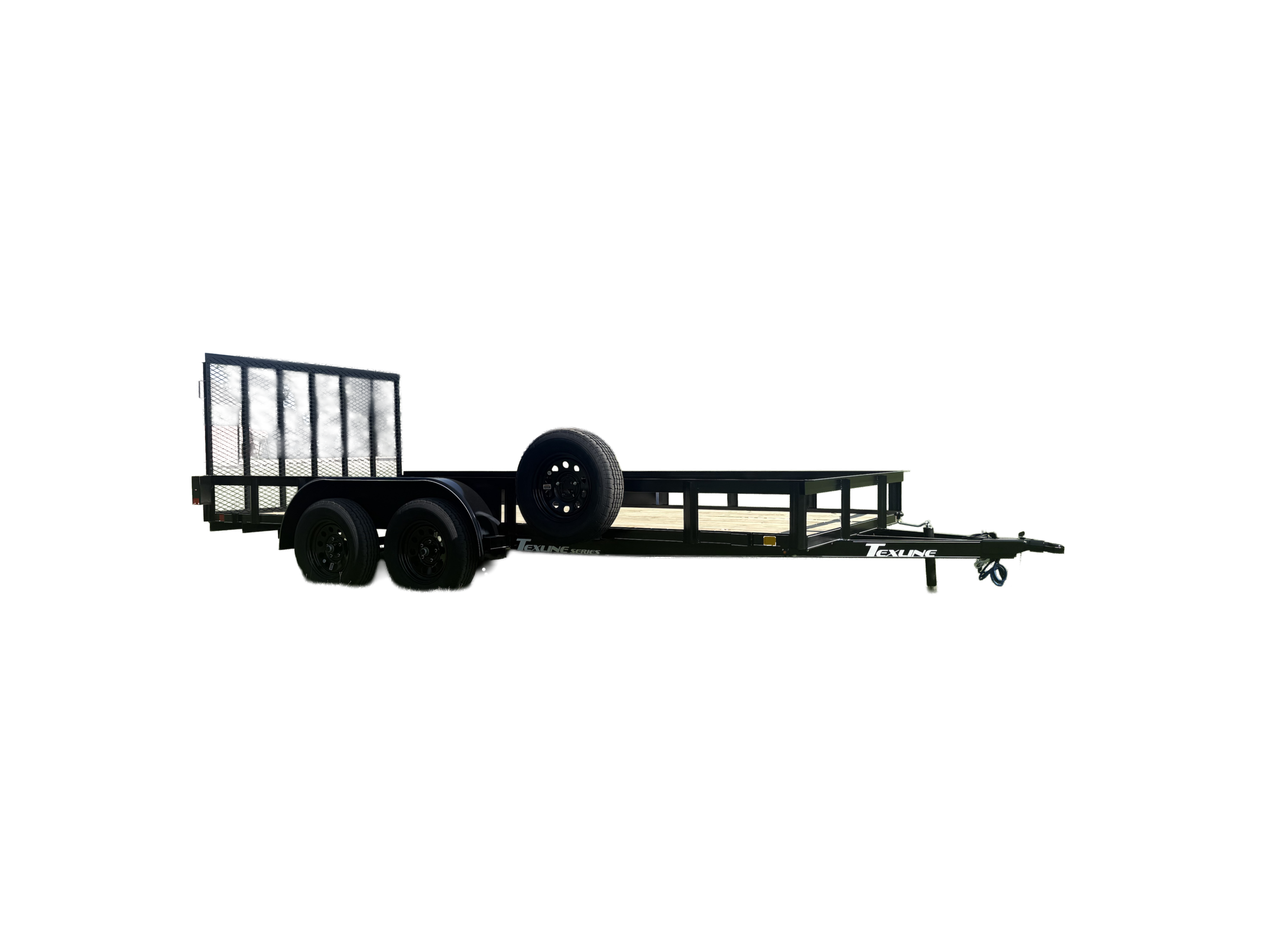

Image shown may include optional features not included in the standard model. *5,200lbs Axle Upgrade includes 4" x 3" x 1/4" Angle Frame, 4" Channel Tongue, and 235/80/R16 Tires. **Top Wind Coupler Jack included on Tongue Mount Tool Box Option.
Texline Series Tandem Axle Utility
Your Build
Image shown may include optional features not included in the standard model. *5,200lbs Axle Upgrade includes 4" x 3" x 1/4" Angle Frame, 4" Channel Tongue, and 235/80/R16 Tires. **Top Wind Coupler Jack included on Tongue Mount Tool Box Option.
| Standard Features | |
|---|---|
| AXLE | (2) 3,500lbs Idler |
| FRAME | 2" x 3" x 3/16" Angle |
| JACK | 5K Swing Jack |
| TONGUE | 4" Channel Wrap |
| UPRIGHTS | 2" x 3" x 3/16" Angle |
| TOP-RAIL | 2" x 3" x 3/16" Angle |
| FENDERS | Smooth |
| OPEN SIDES | Fender Height |
| COUPLER | 2" RAM |
| WHEELS | Black/Silver |
| TIRES | 205/75/R15 |
| TIE-DOWNS | (4) Stake Pockets |
| LIGHTS | Rubber Mount LED |
| Floor | #2 Treated Pine |
*5,200lbs Axle Upgrade includes 4" x 3" x 1/4" Angle Frame, and 235/80/R16 Tire Upgrades
**Top Wind Coupler Jack included on Tongue Mount Tool Box Option
| Available options | ||||
|---|---|---|---|---|
| AXLE | (1) 3,500lbs Idler / ( 1) Brake | (2) 3,500lbs Brakes | *(2) 5,200lbs / (1) Brake | *(2) 5,200lbs Brake |
| FRAME | 4" x 3" x 1/4" Angle | |||
| JACK | 8K Drop Leg Jack | |||
| TONGUE | Extended Tongue | |||
| TOP-RAIL | 2 3/8" Pipe | 2" Sq Tubing | ||
| FENDERS | Tread Plate | |||
| DOVETAIL | 24" Rolled | 24" Mesh | 24" Steel | |
| OPEN SIDES | 24" | 36" | 48" | |
| COUPLER | 2 5/16" RAM | |||
| TIRES | 225/75/R15 | |||
| GATES | 77" Fold Down 77" Bi-Fold 60" Bi-Fold SIDE | 83" Fold Down 83" Bi-Fold Removable Ramp Sides | 5' Slide Ramps 60" Side Fold Spring Assist Any Gate | Heavy Spring Gate |
| TIE-DOWNS | Extra Pockets | D-Rings | **Tongue Mount Tool Box | |
| LIGHTS | Tread Plate | |||
*5,200lbs Axle Upgrade includes 4" x 3" x 1/4" Angle Frame, and 235/80/R16 Tire Upgrades
**Top Wind Coupler Jack included on Tongue Mount Tool Box Option
- 77" X 12'
- 77" X 14'
- 77" X 16'
- 77" X 18'
- 77" X 20'
- 83" X 12'
- 83" X 14'
- 83" X 16'
- 83" X 18'
- 83" X 20'
Black
Smoked Charcoal
Industrial Gray
White
Midnight Blue
Kubota Orange
Candy Apple Red
John Deere Green
Cat Yellow
