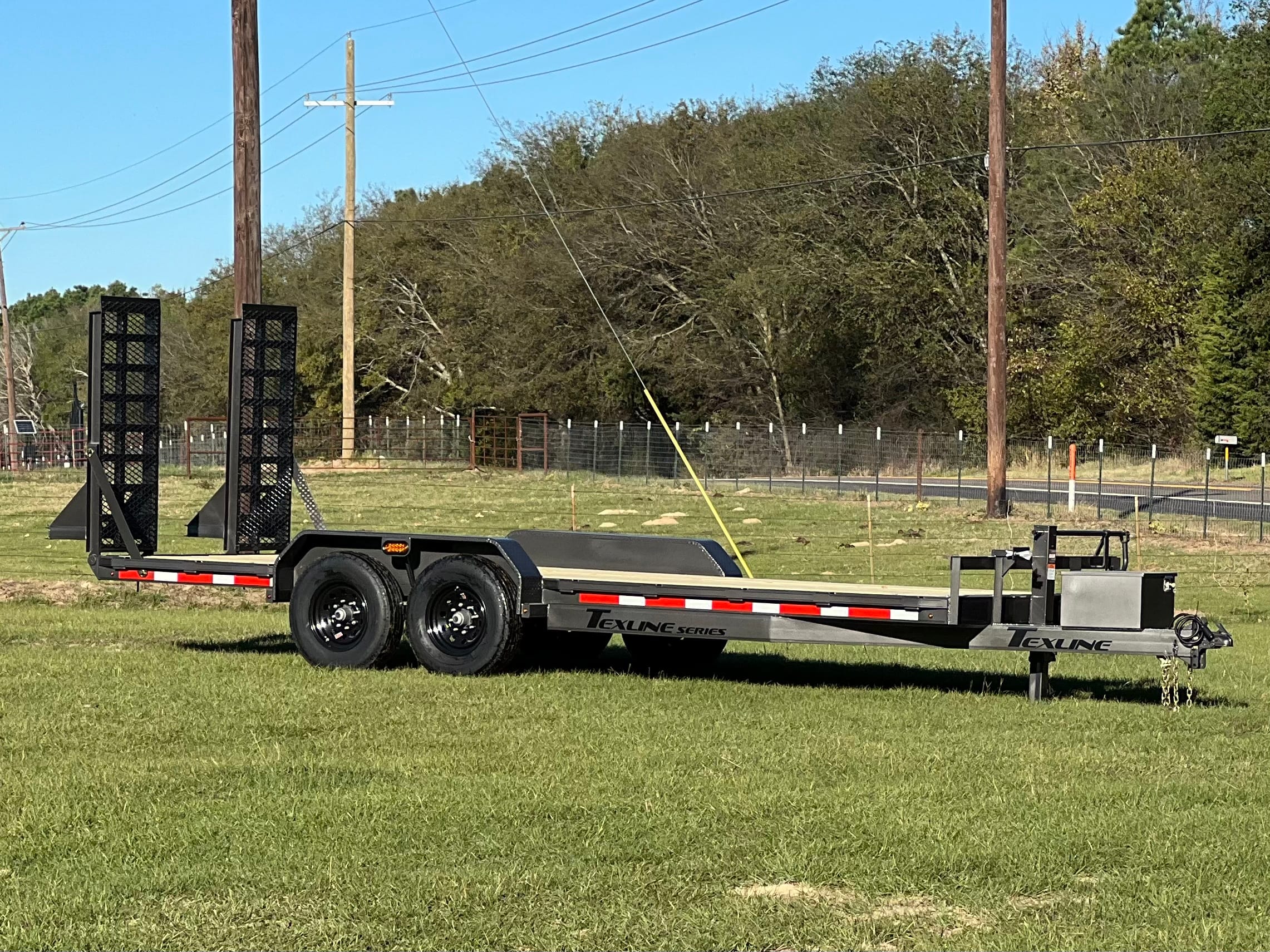

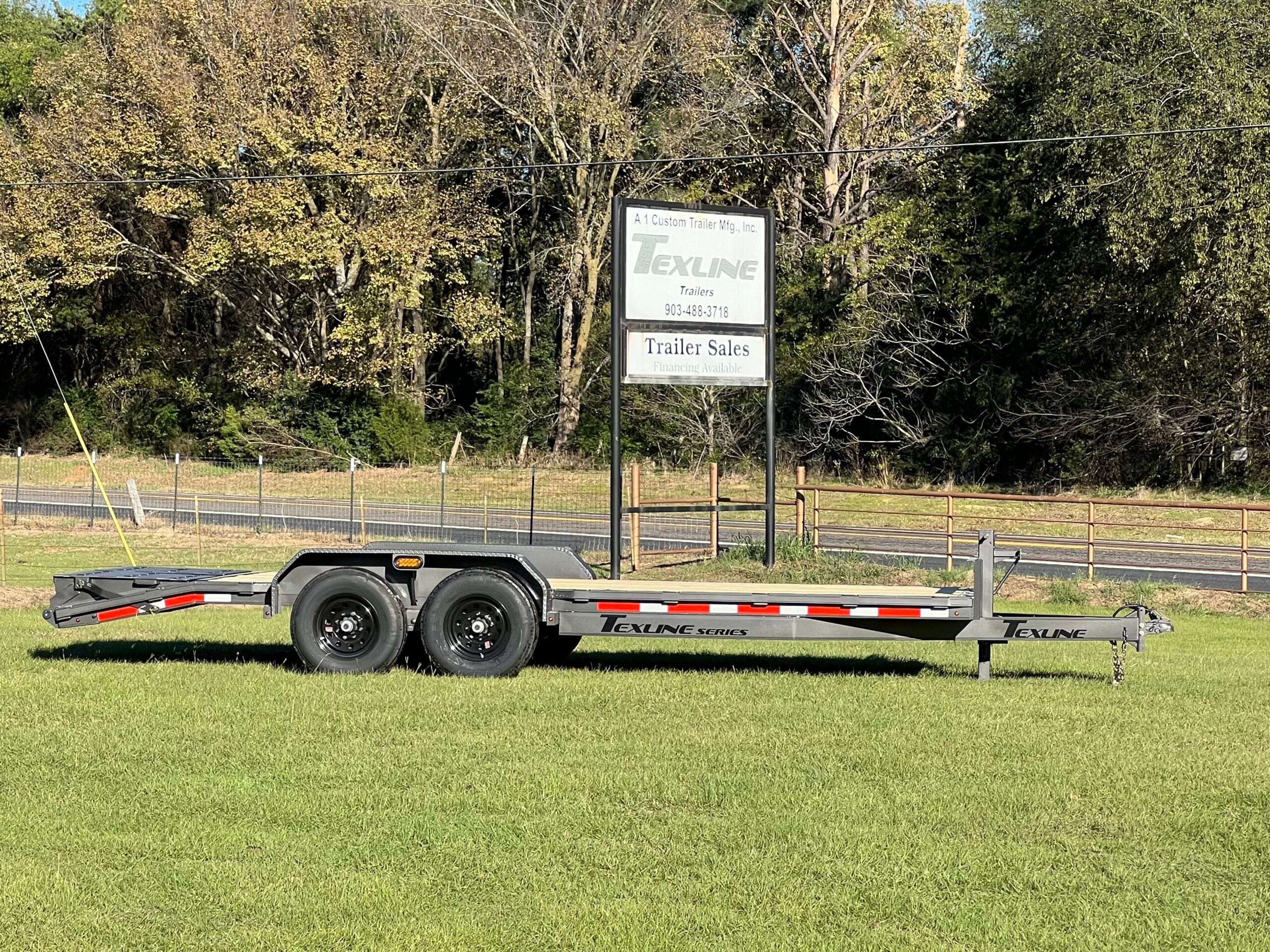

Bumper Pull Bobcat
Frame
| Standard |
6" Channel Up to 20' 8" Channel 22' Up to 32' |
CROSSMEMBERS
| Standard |
|
3" Channel on 16" Centers |
Jack
| Standard | Available Options | |||
|
1 12K Drop Leg Jack |
Dual 12K Jacks |
Hydraulic Jacks |
2-Speed Jacks |
Big Box Package w/Dual Jacks Includes 12" x 14lb I-Beam Gooseneck Upgrade |
Axle
| Standard | Available Options | |||||
| 7,000lb EZ Lube w/2 Brakes | 8,000lb Hybrid Brake *Requires Tire Upgrade | |||||
| Tires: 230/80/R16 10PLY | 235/80/R16 14PLY | 215/75/R17.5 18PLY | ||||

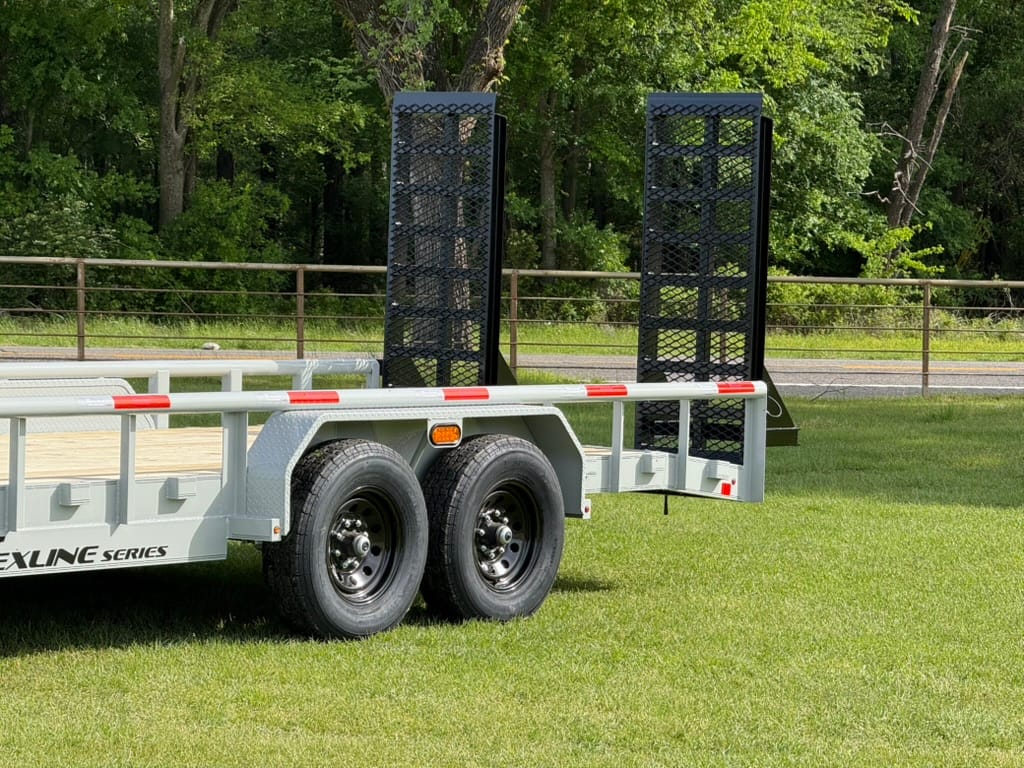

Dovetail/Ramps
| Standard | Available Options | ||
|
DOVETAIL No Standard Feature |
ROLLED DOVE | STEEL PLATE | |
|

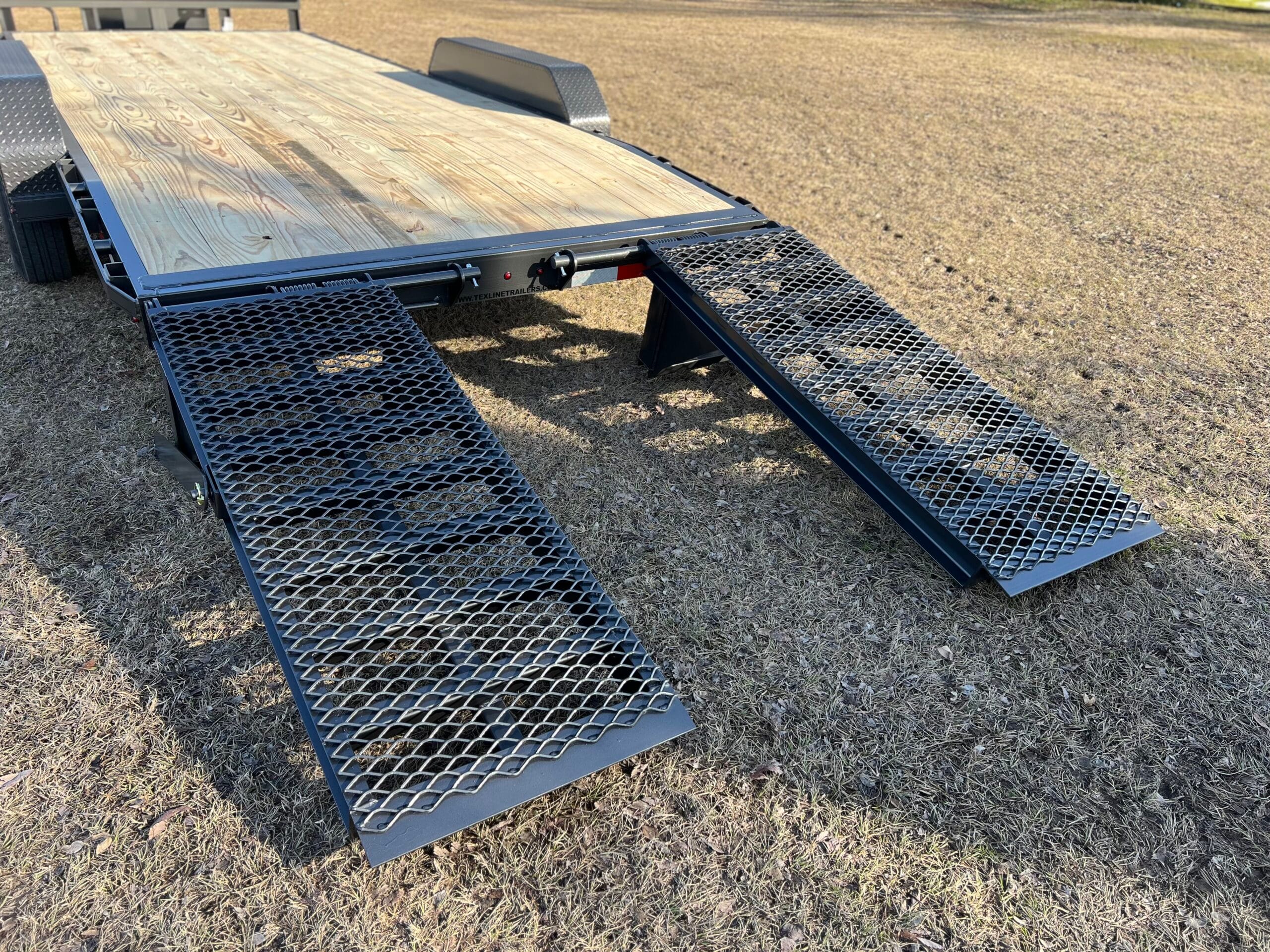

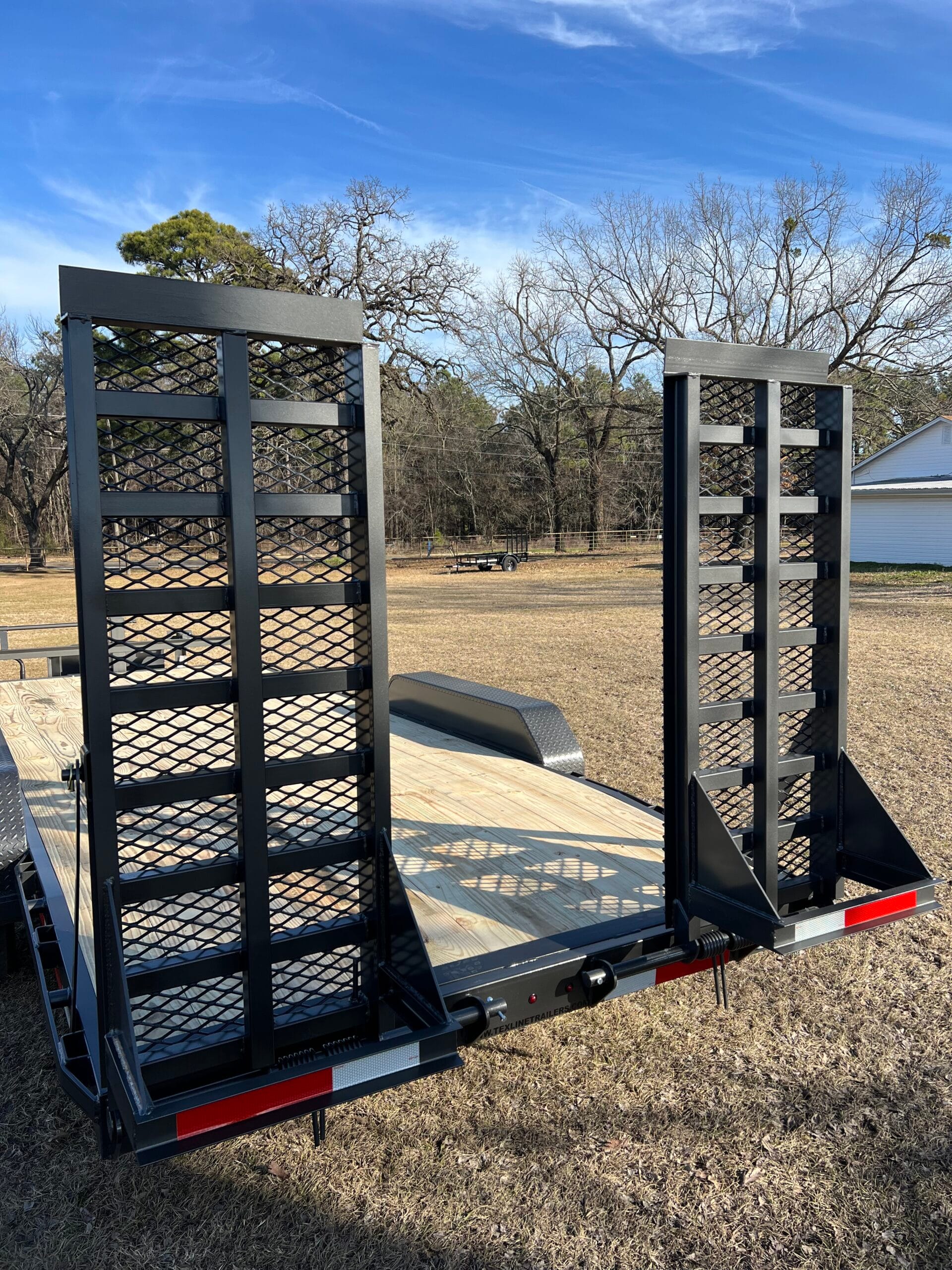

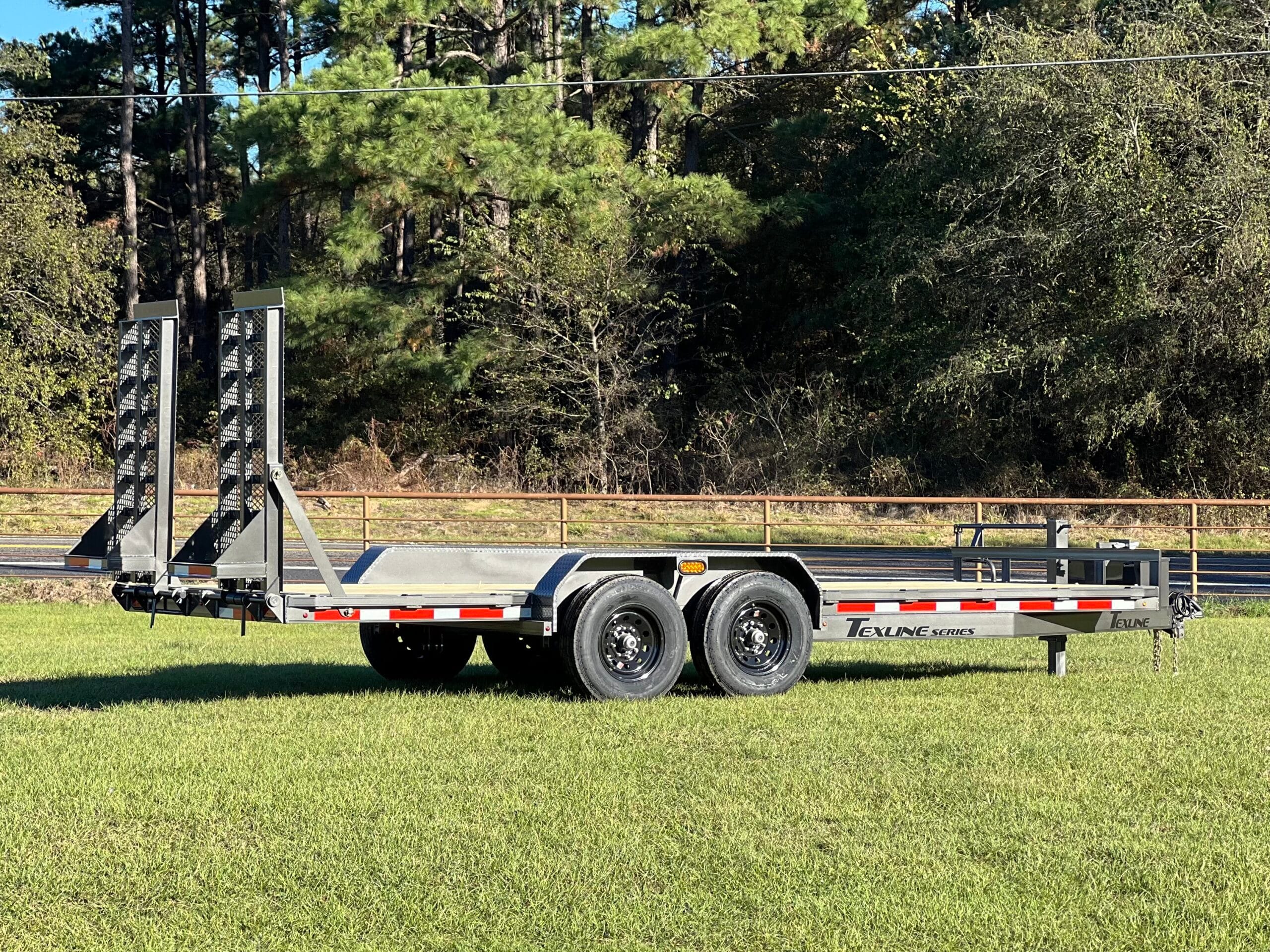

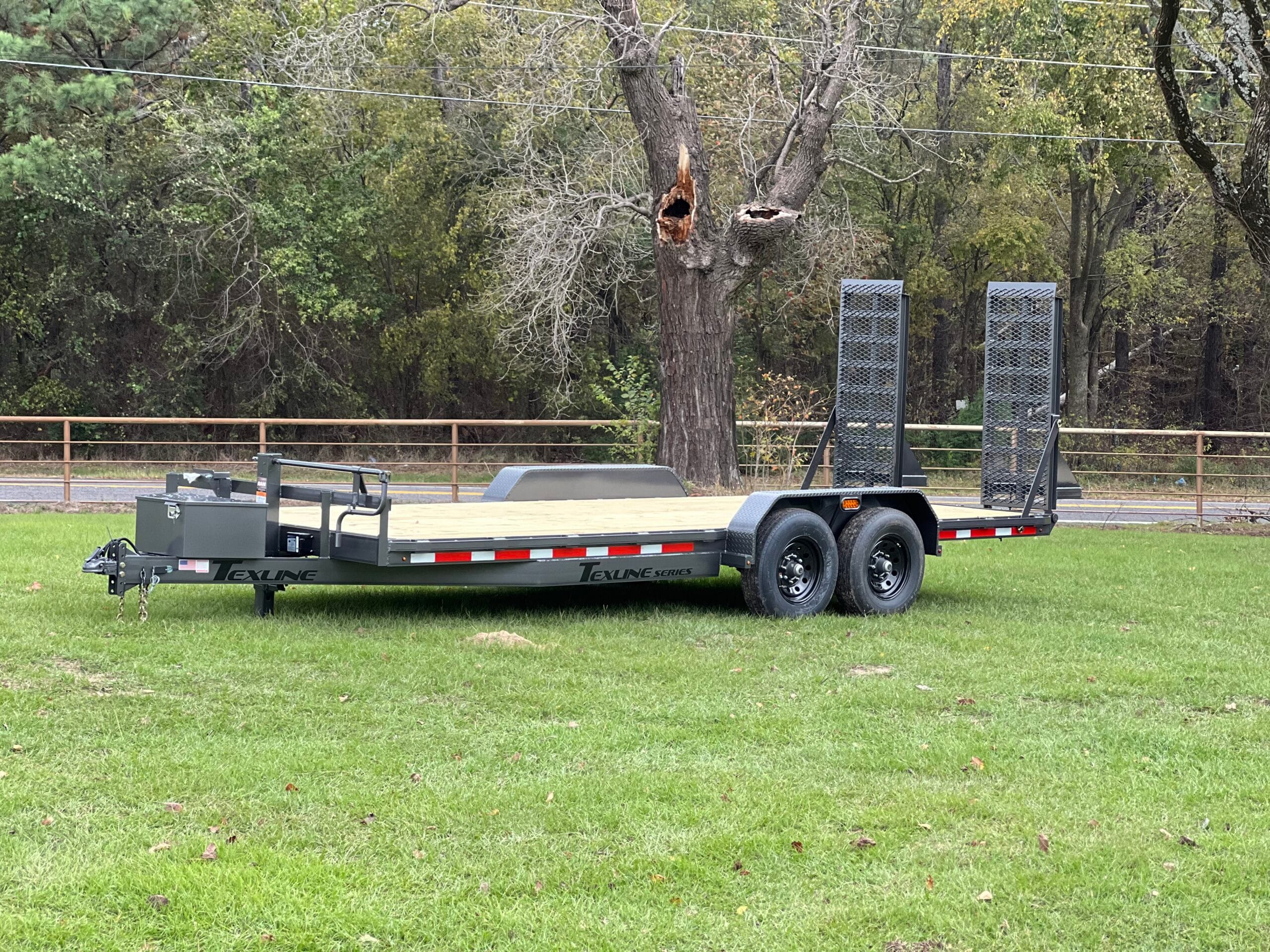

RAMPS Stand-Up / Slide-In Included |

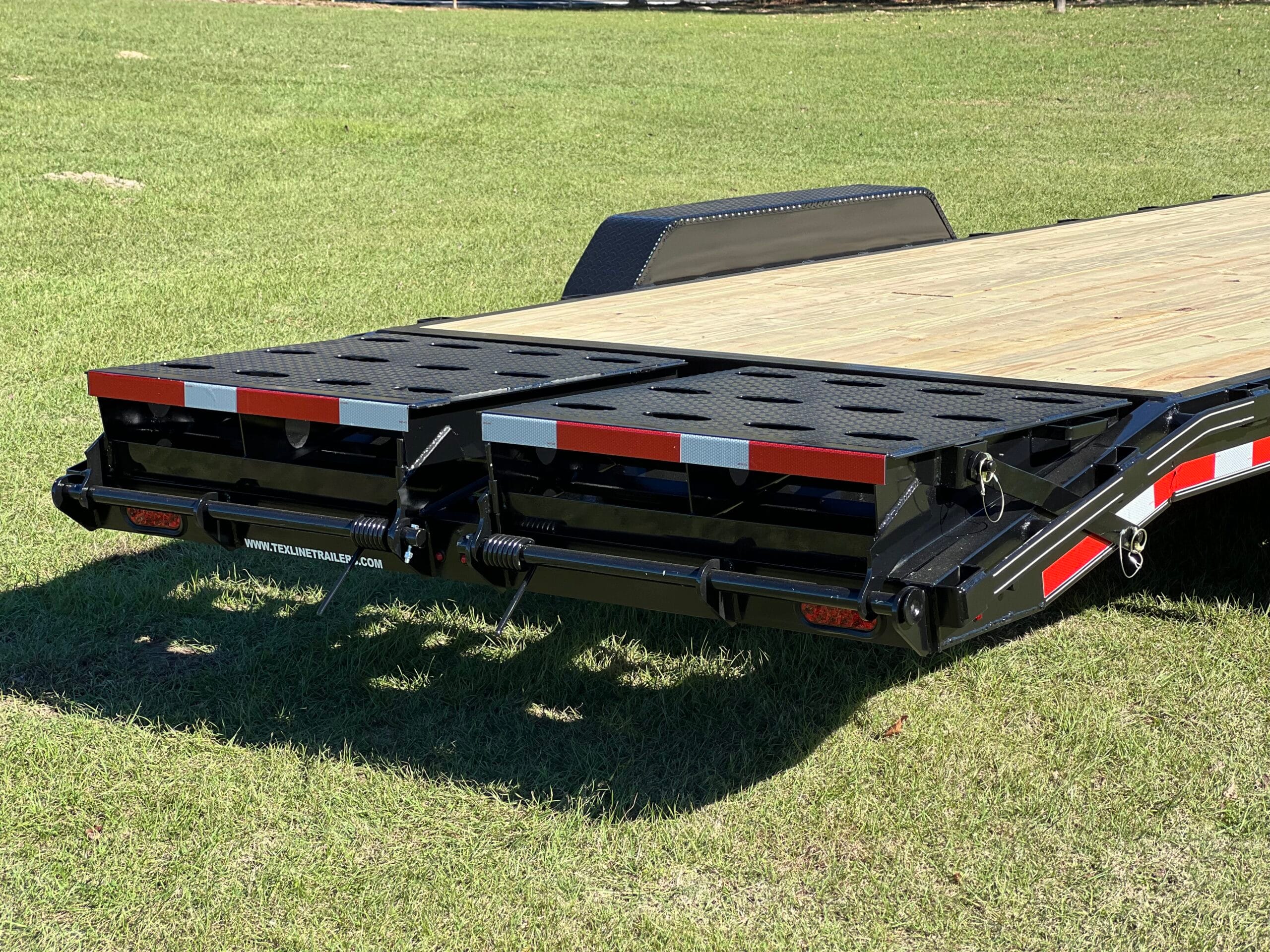

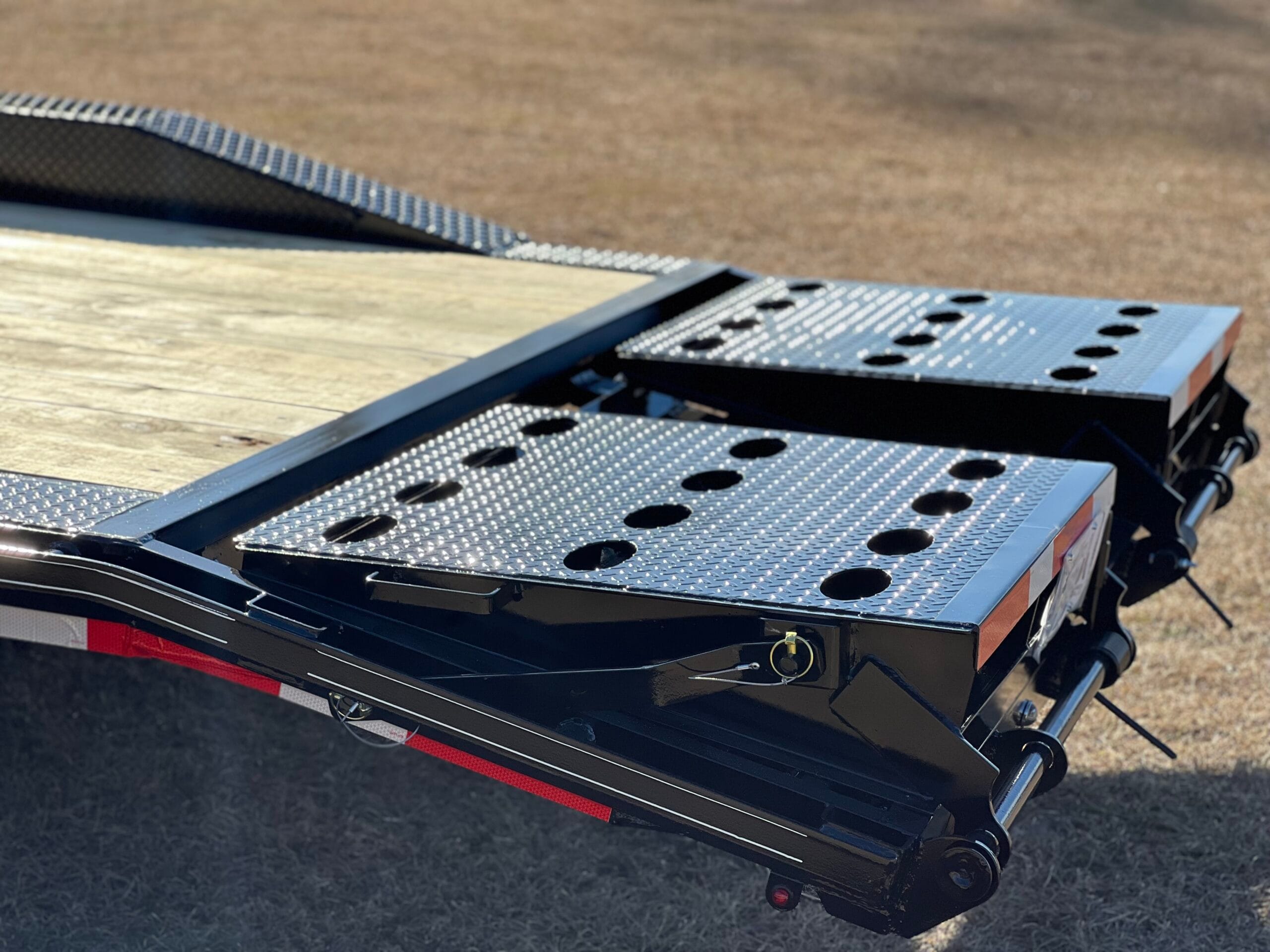

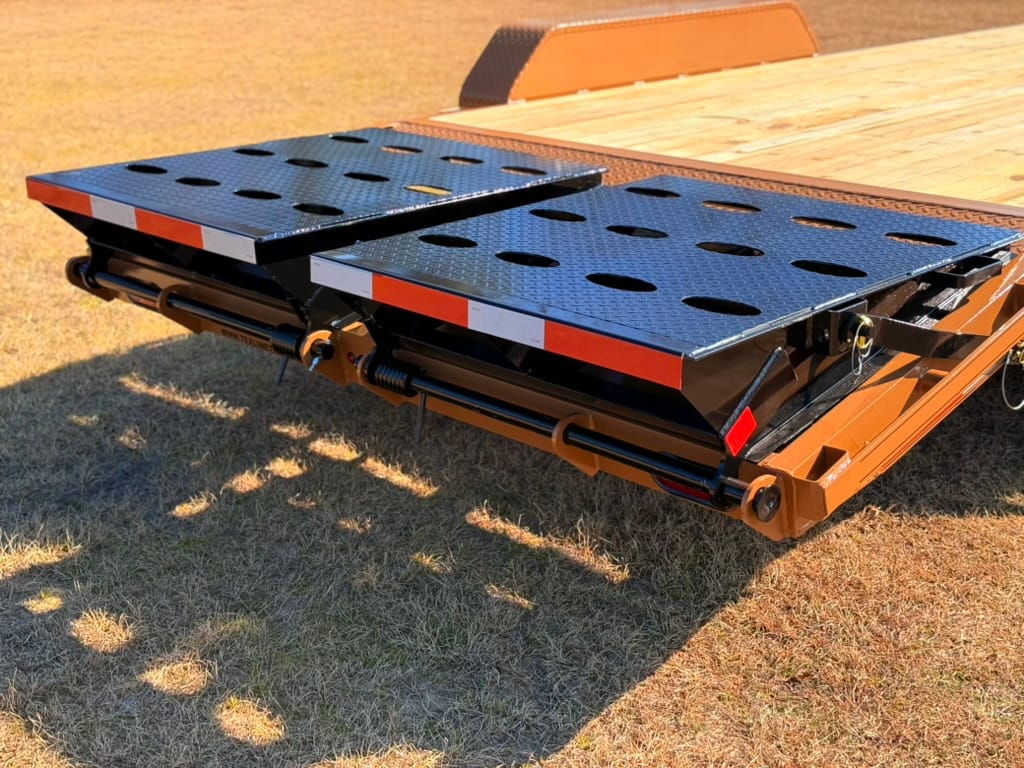

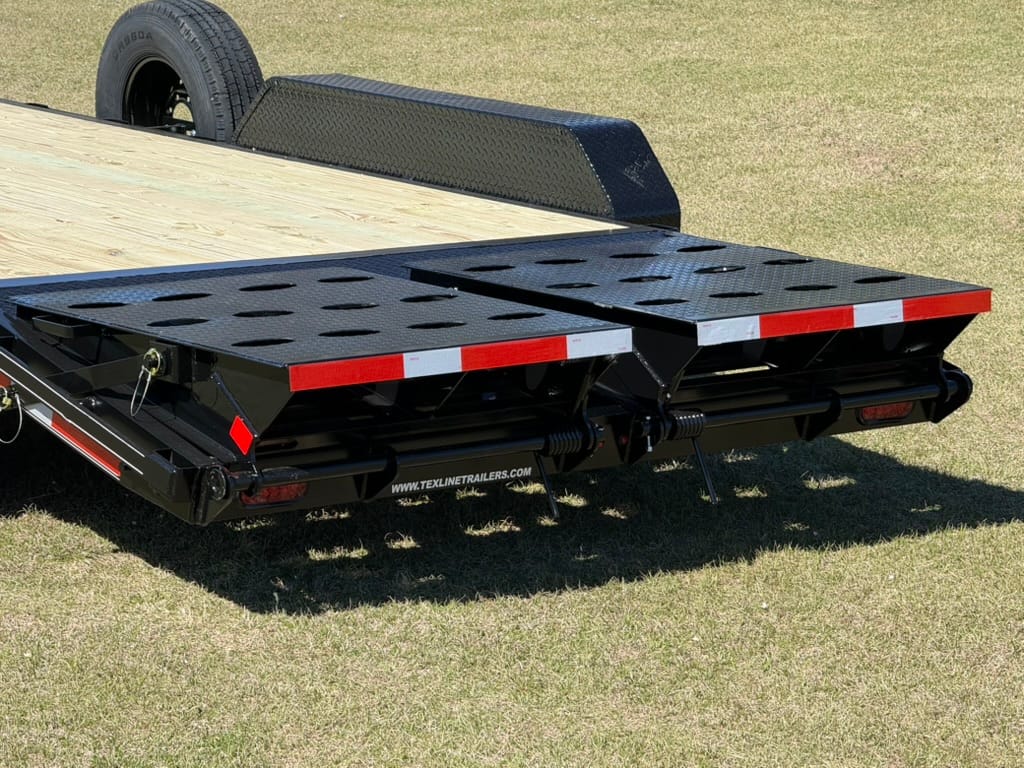

TRACTOR GATE | 24" HD RAMPS | TEX-RAMPS |
FLOORS
| Standard | Available Options |
| #2 Treated Pine |
Steel |
Open Sides
| Standard | Available Options | ||
| 3" Pipe | *Expanded Metal Sides Available | |
Spares
| Standard | Available Options |

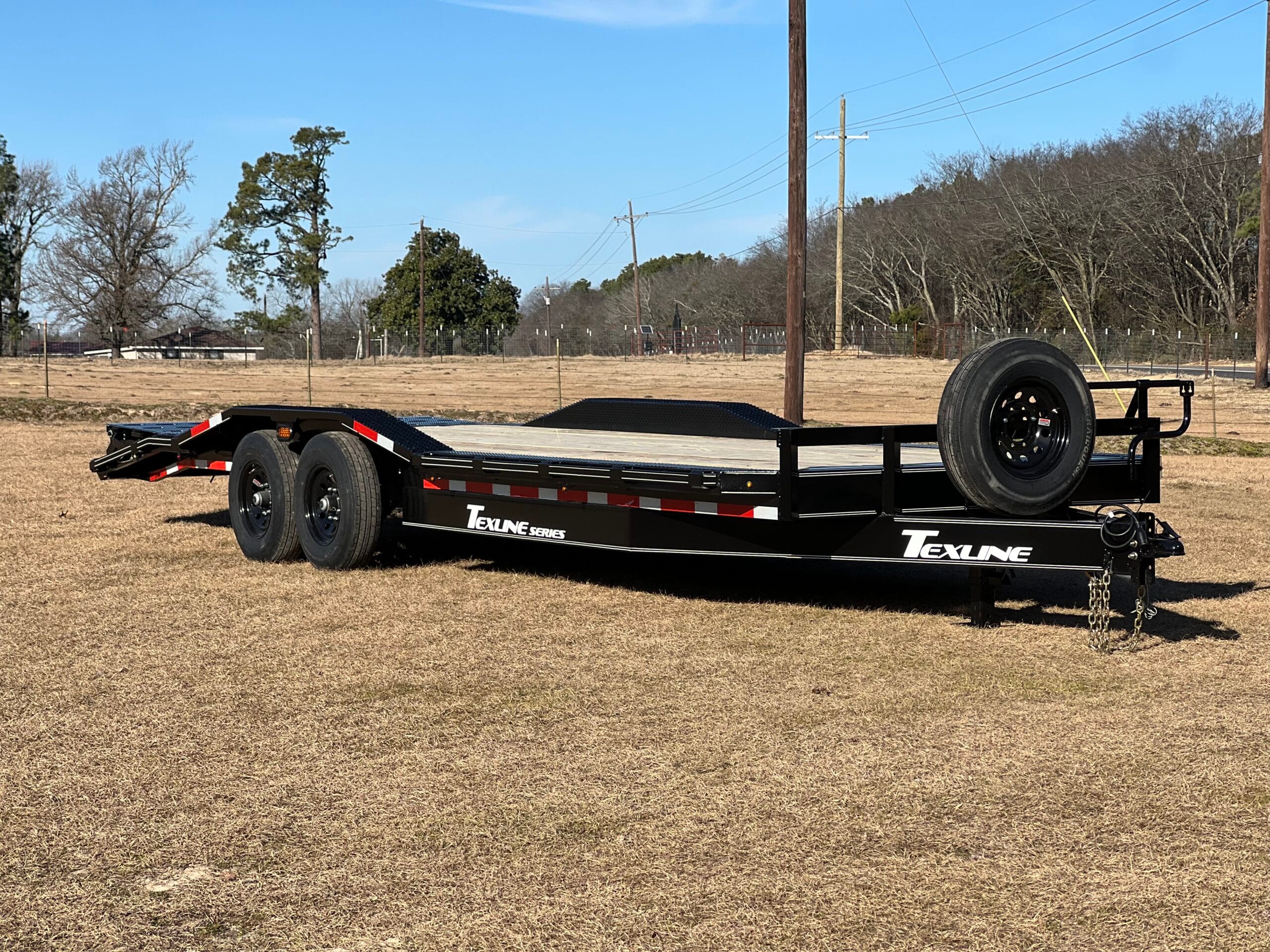

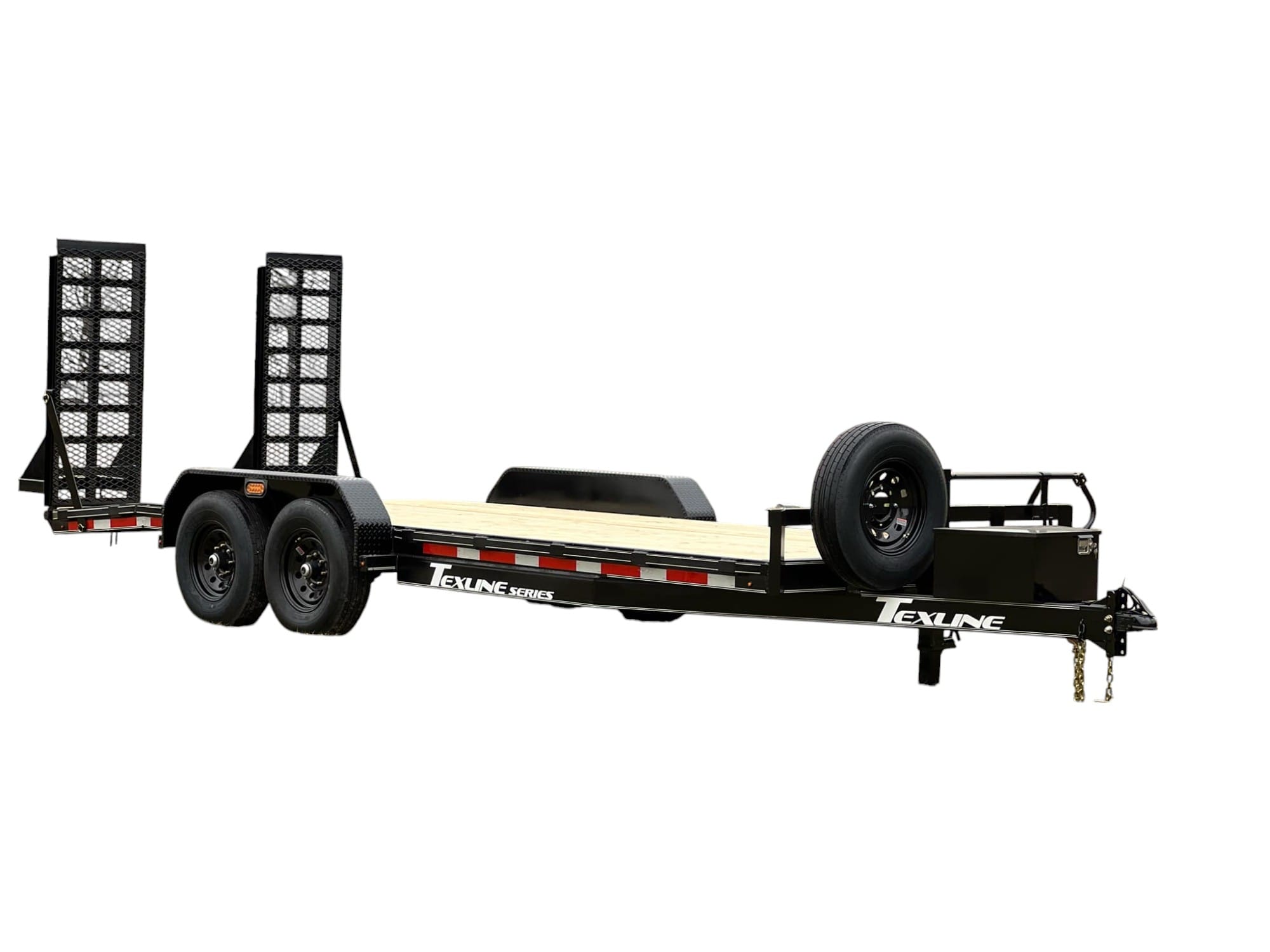

Spare Mount Included 235/80/R16 10PLY | 14PLY |

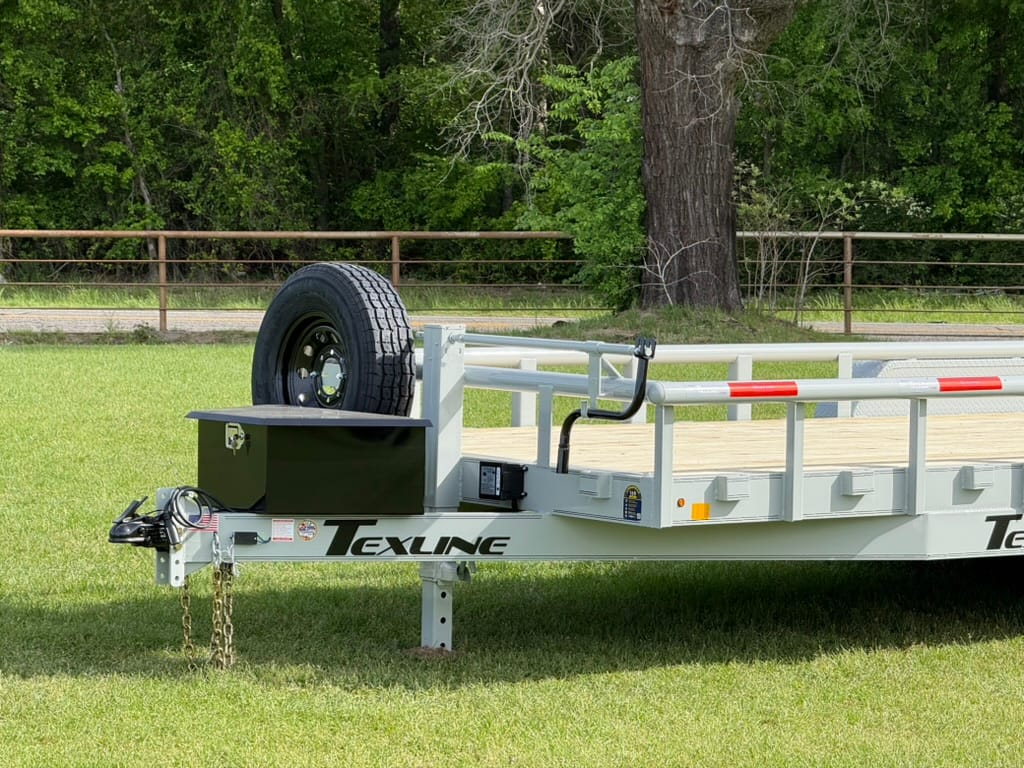

Storage
| Standard | Available Options | ||

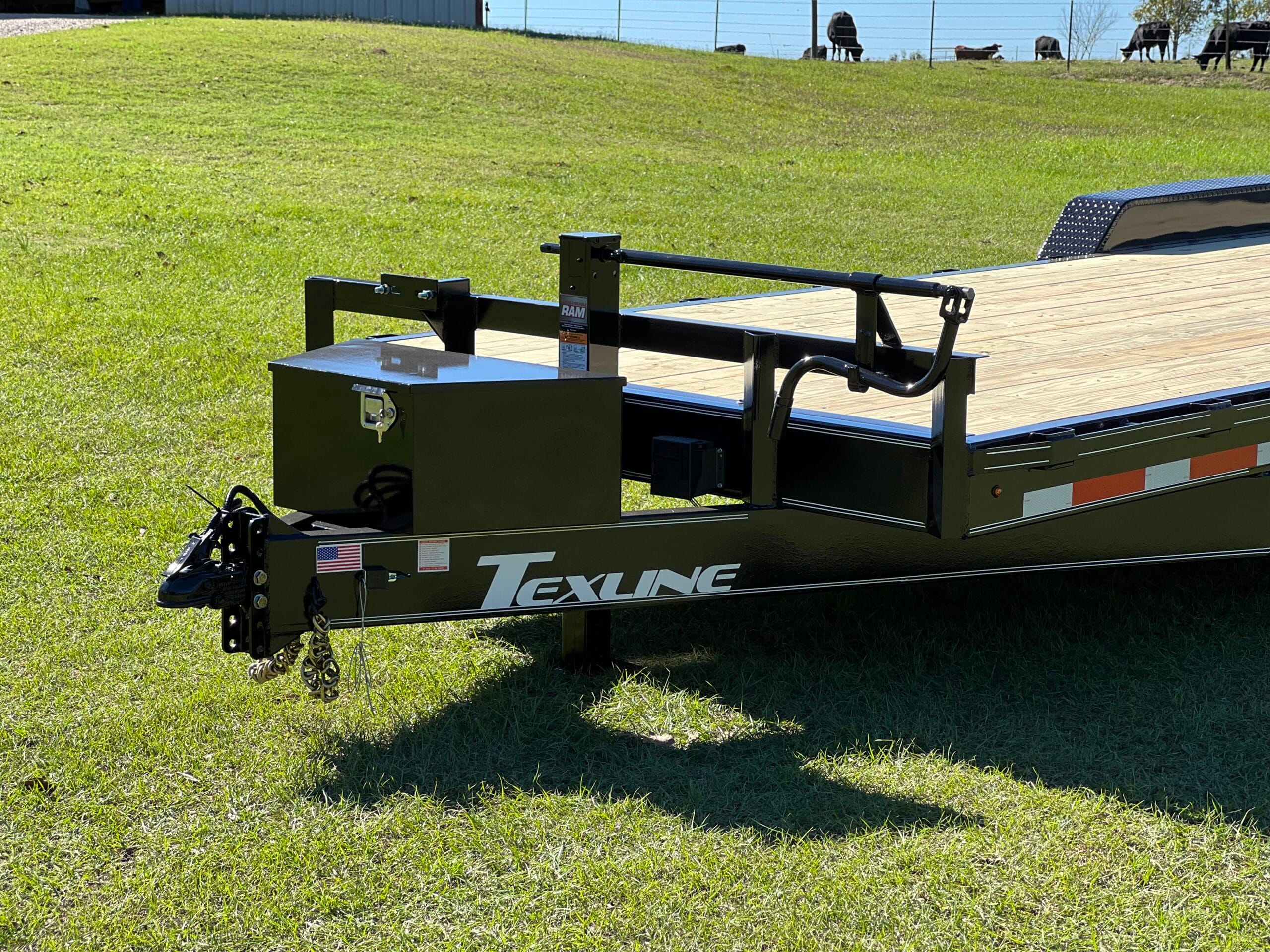

| Tongue Mount Tool Box | ||
BED WIDTH
| Standard | Available Options |
| 83" Standard Width |
102" Deck (Includes 10" Channel Drive Over Fenders) |
TONGUE
| Standard |
|
6" Channel / 8" Channel on 22'-24' |

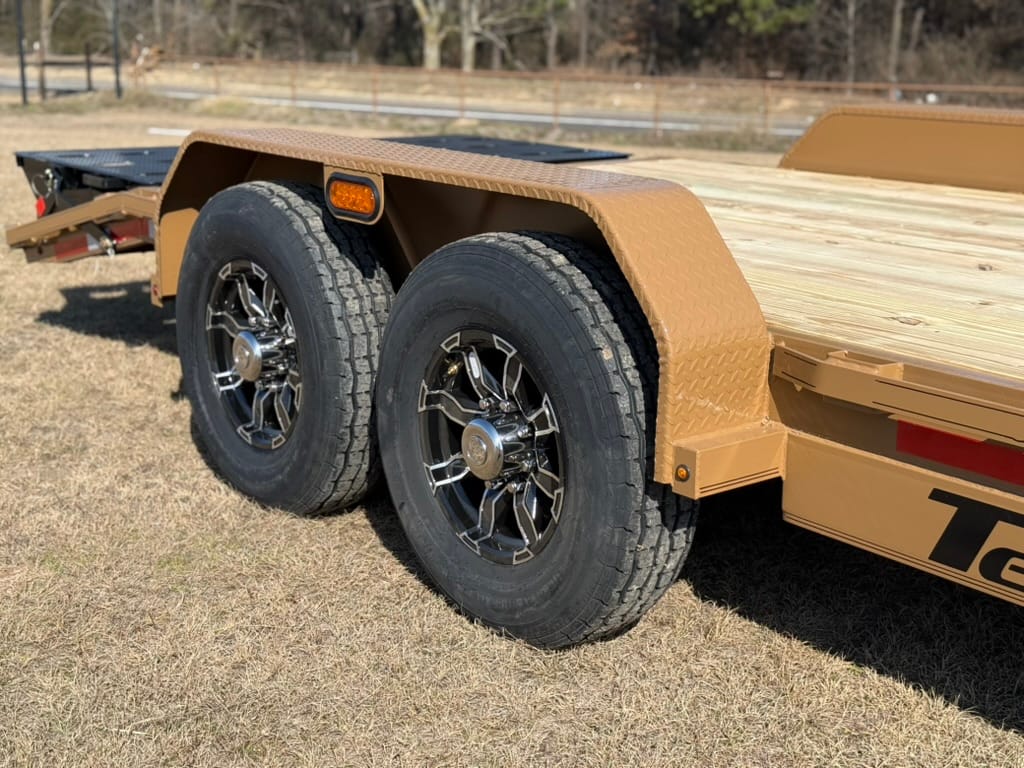

FENDERS
| Standard | Available Options |
| 14GA Reinforced Tread Plate | 10" Channel Drive Over |
TIE-DOWNS
| Standard | Available Options | |
| Pipe Spools/Stake Pockets on 1' Centers |
Extra Pockets |
Winch Plate |
Build Your Own.
You Deserve the best
- Configure Select your size, options, and finishes.
- Submit Send your custom build to a dealer.
- Connect A dealer reaches out with final pricing.

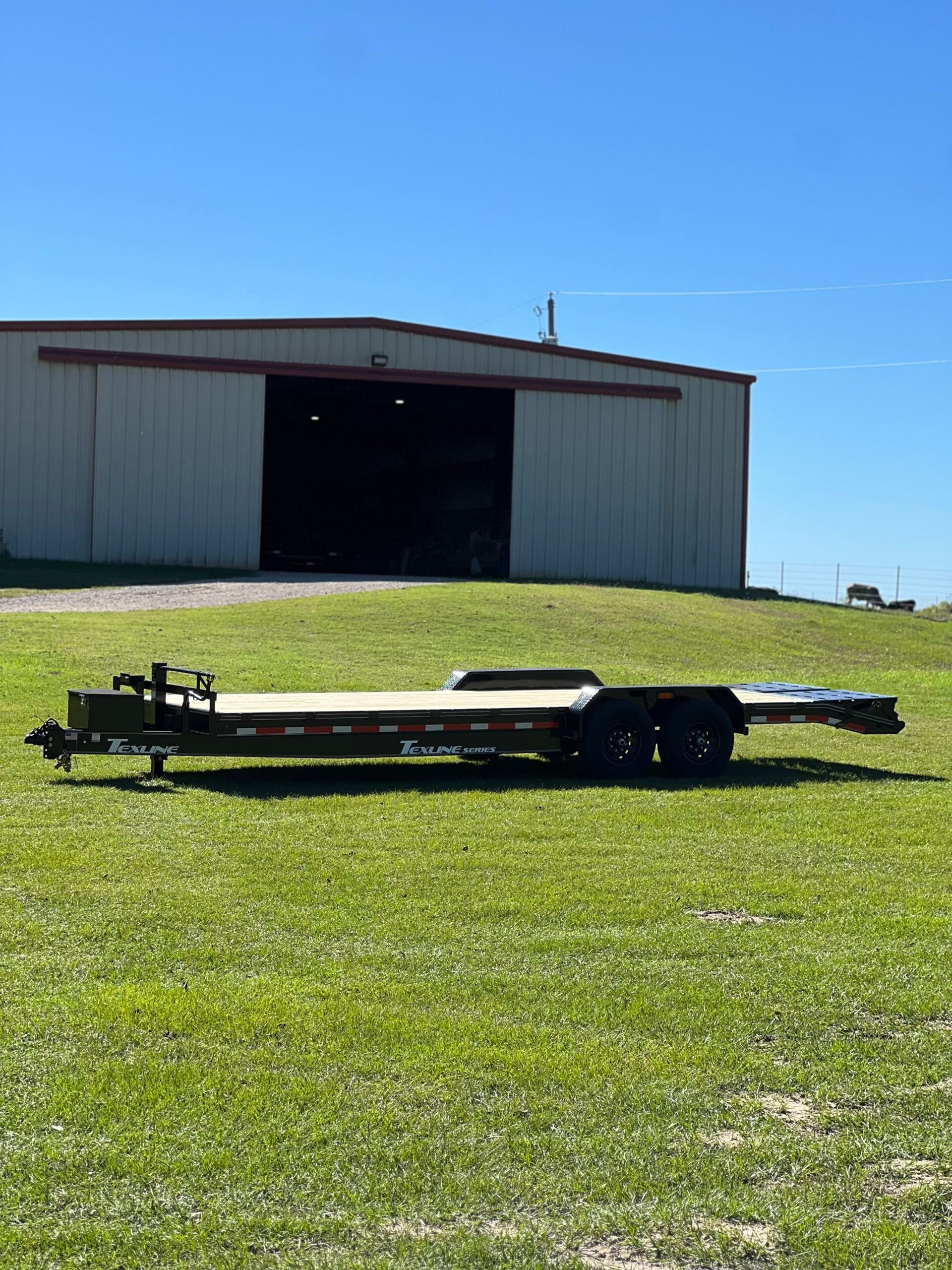

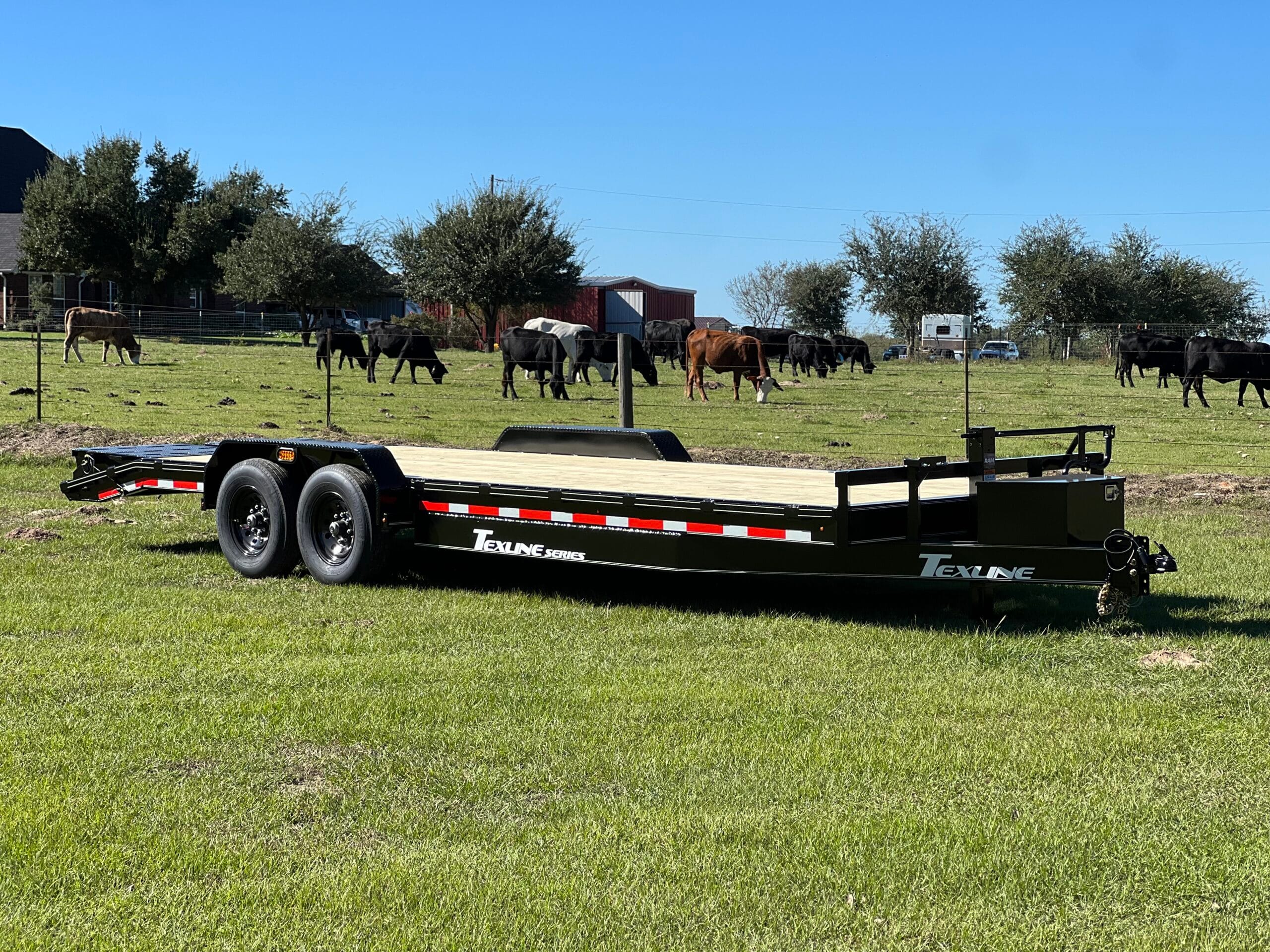

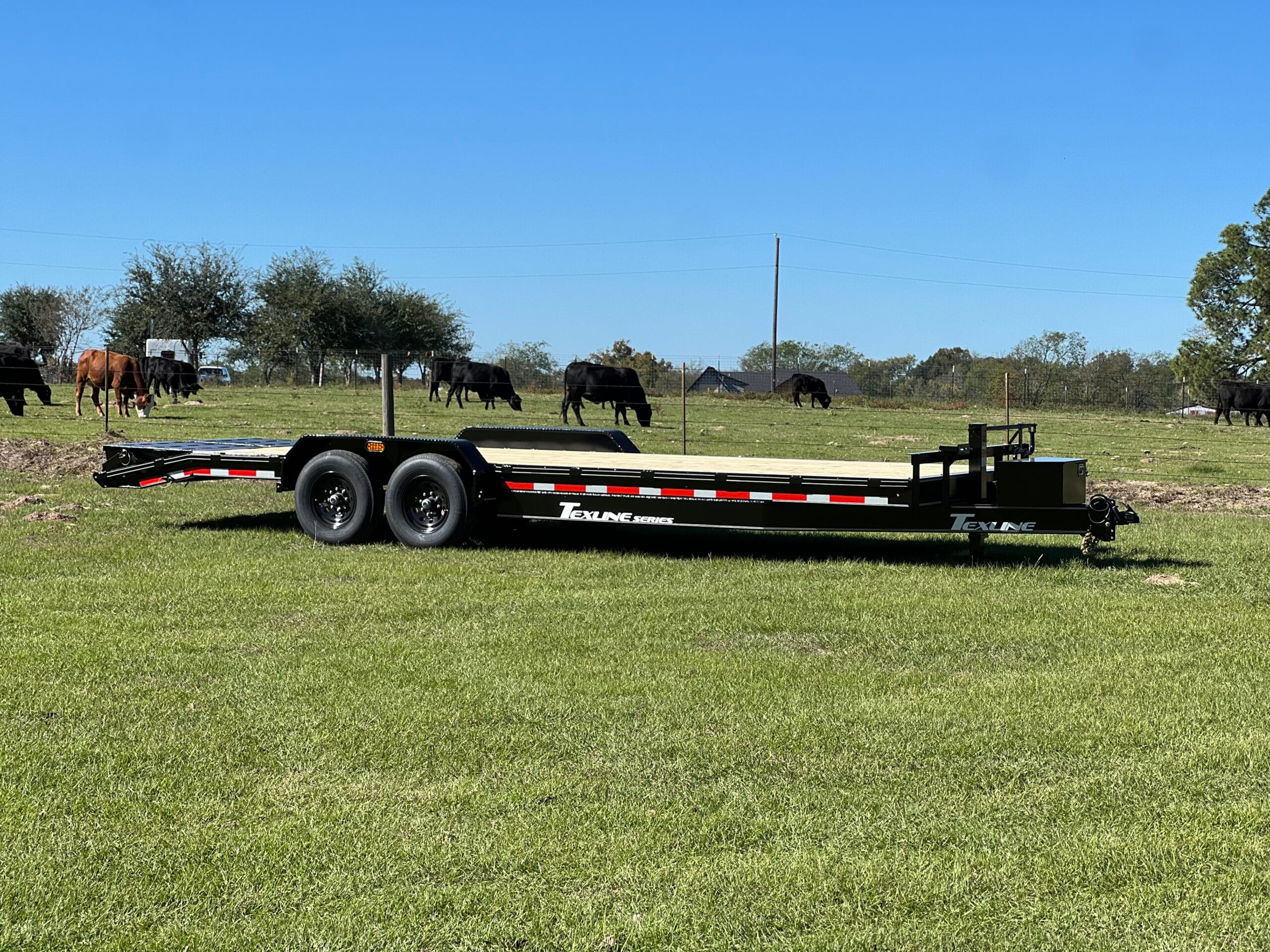

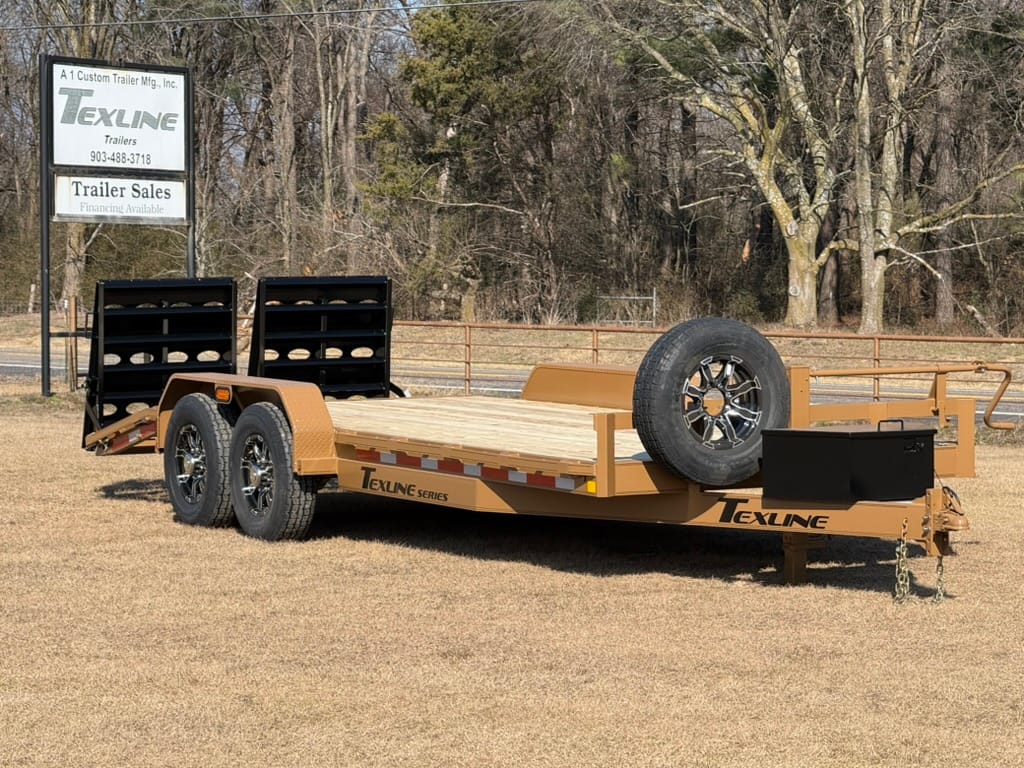

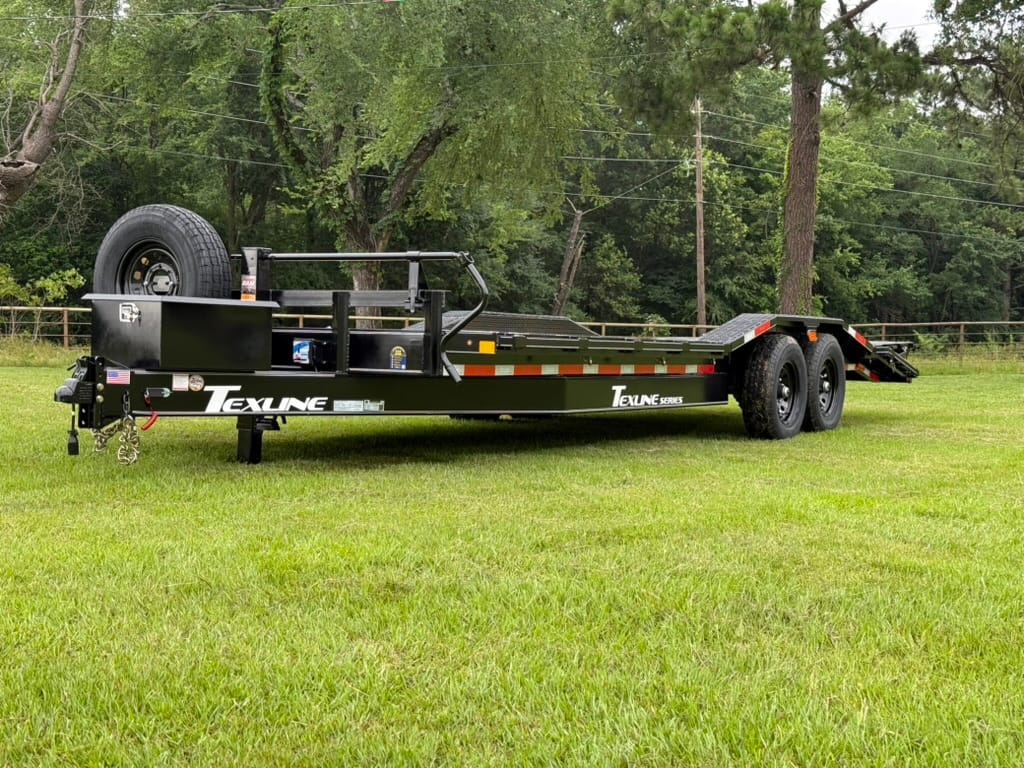

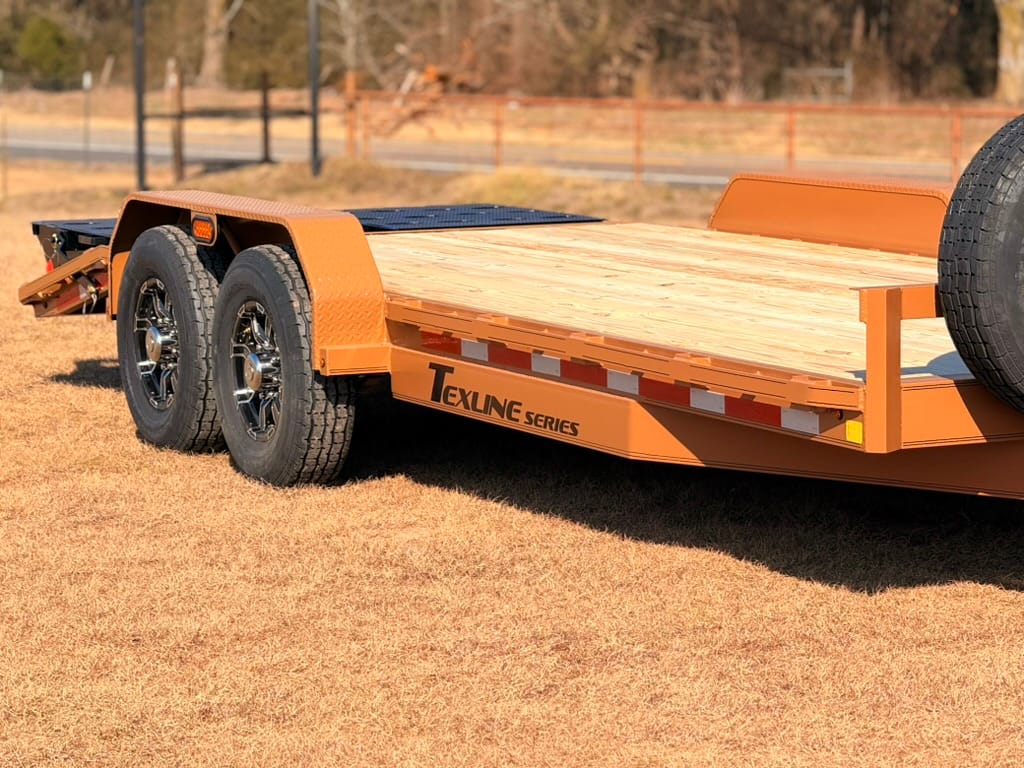

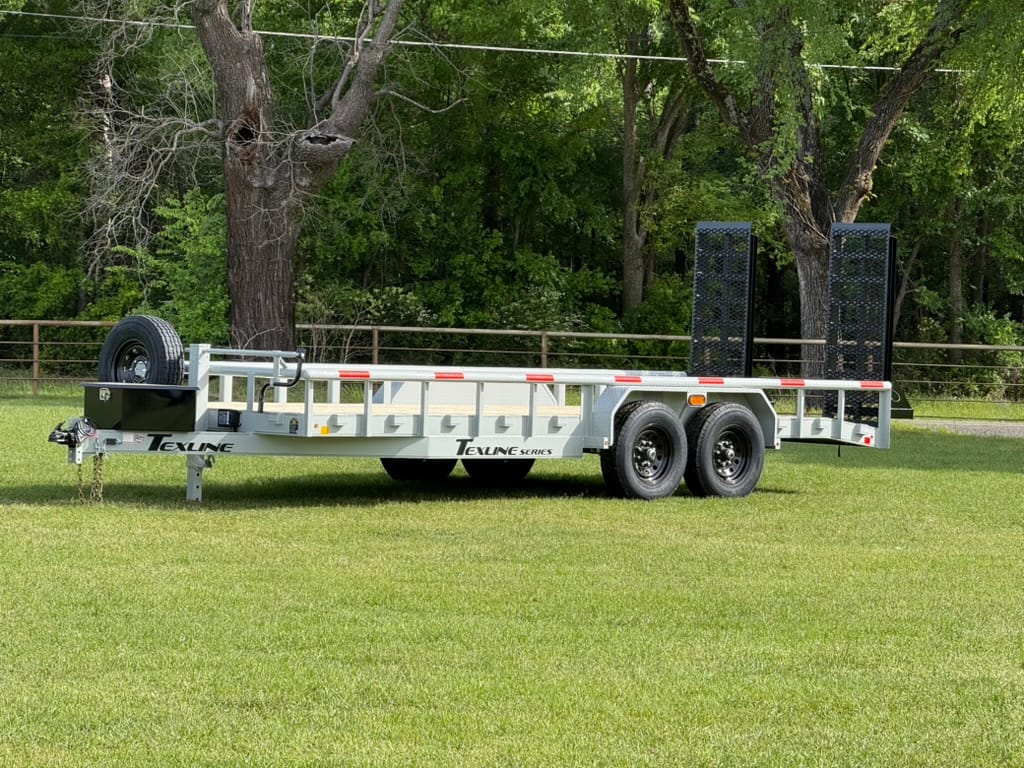

Image shown may include optional features not included in the standard model. Third 7K Axle upgrade — 21,000 lb GVWR (+$1,995). Tex-Ramps not available on 102" × 20' configuration. Aluminum wheel package not available with 14PLY tire option. Frame: 6" Channel up to 20'; 8" Channel 22' up to 32'. Rub-Rail option includes stake pockets + pipe spools on 1' centers.
Bobcat Series
Your Build
Image shown may include optional features not included in the standard model. Third 7K Axle upgrade — 21,000 lb GVWR (+$1,995). Tex-Ramps not available on 102" × 20' configuration. Aluminum wheel package not available with 14PLY tire option. Frame: 6" Channel up to 20'; 8" Channel 22' up to 32'. Rub-Rail option includes stake pockets + pipe spools on 1' centers.
| standard features | |
|---|---|
| BED WIDTH | 83" Standard Width |
| FRAME | 6" Channel / 8" Channel on 22'-24' |
| CROSSMEMBERS | 3" Channel on 16" Centers |
| TONGUE | 6" Channel / 8" Channel on 22'-24' |
| JACK | (1) 12K Drop Leg Jack |
| AXLES | 7,000lb EZ Lube w/2 Brakes |
| FLOORS | #2 Treated Pine |
| WHEELS | Silver/Black Option Included |
| TIRES | 230/80/R16 10PLY |
| RAMPS | Stand-Up/Slide-In Option Included |
| TIE-DOWNS | Pipe Spools/Stake Pockets on 1' Centers |
| RUB-RAIL | 3/8" Reinforced Rub-Rail |
| FENDERS | 14GA Reinforced Tread Plate |
| LIGHTS | Rubber Mount LED |
*Tex-Ramps not available on 102" x 20' option*
| available options | |||
|---|---|---|---|
| BED WIDTH | 102" Deck (Includes 10" Channel Drive Over Fenders) | ||
| TONGUE | 8" Gooseneck | Big Box Package w/Dual Jacks | |
| JACK | Dual 12K Jacks | ||
| AXLES | 8,000lb Hybrid Brake *Requires Tire Upgrade | ||
| FLOORS | Steel | ||
| DOVETAIL | Rolled Dove | Steel Plate | |
| TIRES | 235/80/R16 14PLY | 215/75/R17.5 18PLY | |
| RAMPS | Tractor Gate | 24" HD Ramps | Tex-Ramps |
| OPEN SIDES | 3" Pipe | *Expanded Metal Sides Available | |
| SPARES | 235/80/R16 10PLY | 14PLY | |
| TIE-DOWNS | Extra Pockets | Winch Plate | |
| FENDERS | 10" Channel Drive Over | ||
- 83" X 14'
- 83" X 16'
- 83" X 18'
- 83" X 20'
- 83" X 22'
- 83" X 24'
Black
Smoked Charcoal
Industrial Gray
White
Midnight Blue
Kubota Orange
Candy Apple Red
John Deere Green
Cat Yellow
