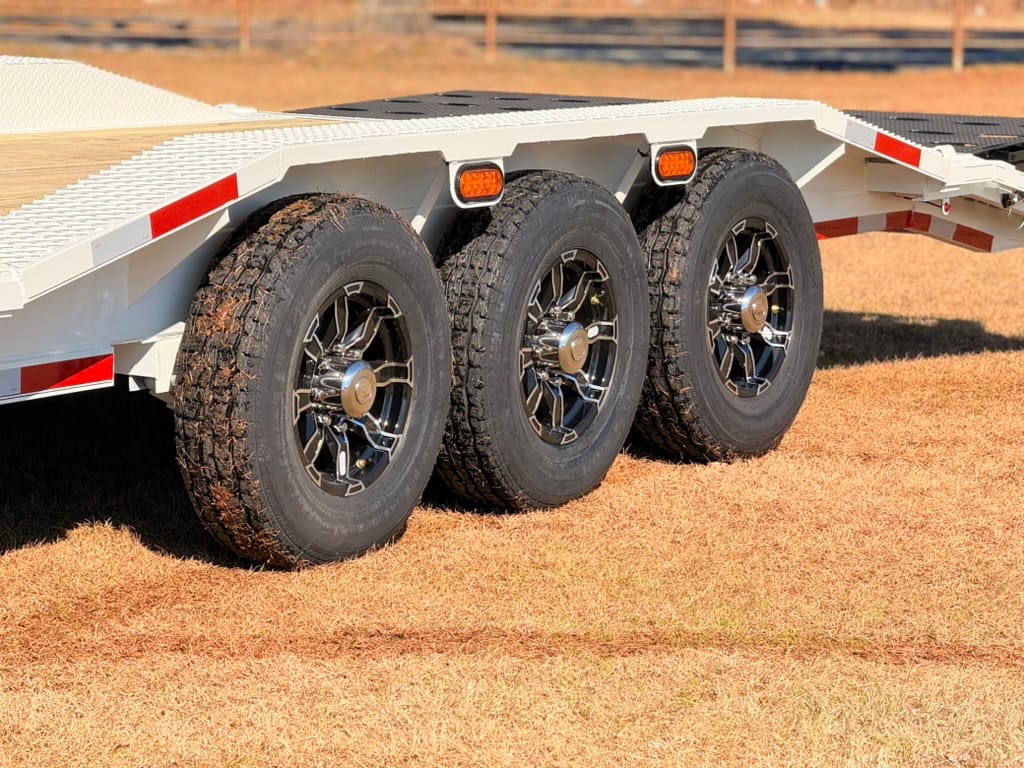

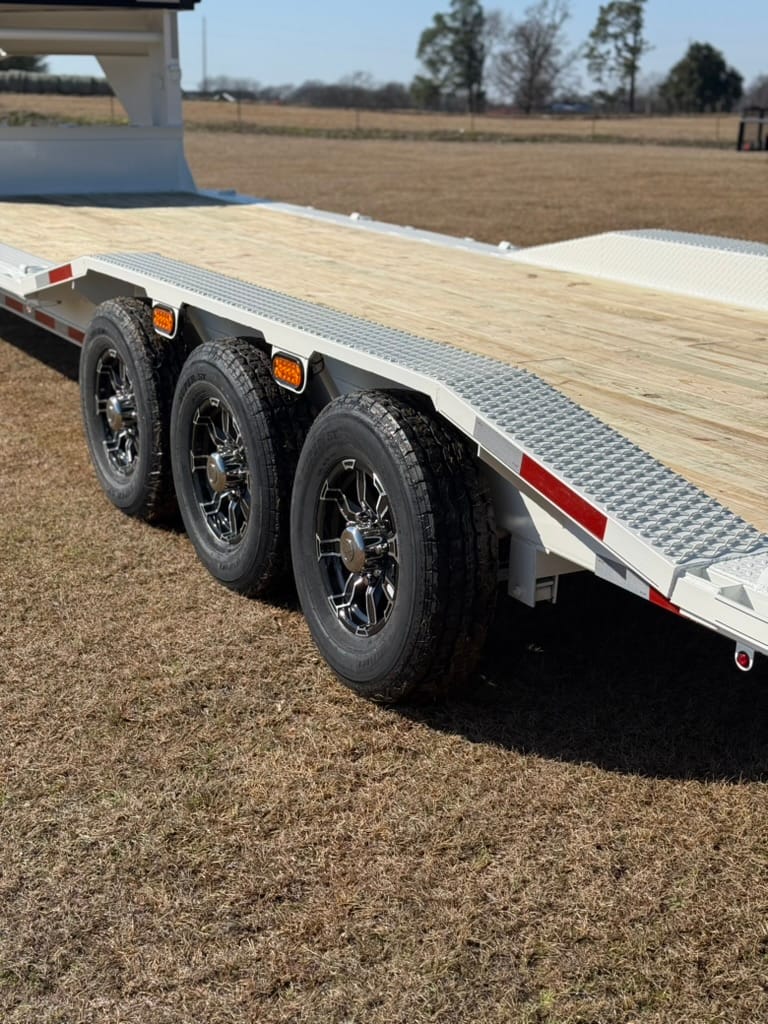

Axles
| Standard | Available Options | |||||
| 7,000lb EZ Lube w/2 Brakes | 8,000lb Hybrid Brake *Requires Tire Upgrade | |||||
| Tires: 230/80/R16 10PLY | 235/80/R16 14PLY | 215/75/R17.5 18PLY | ||||

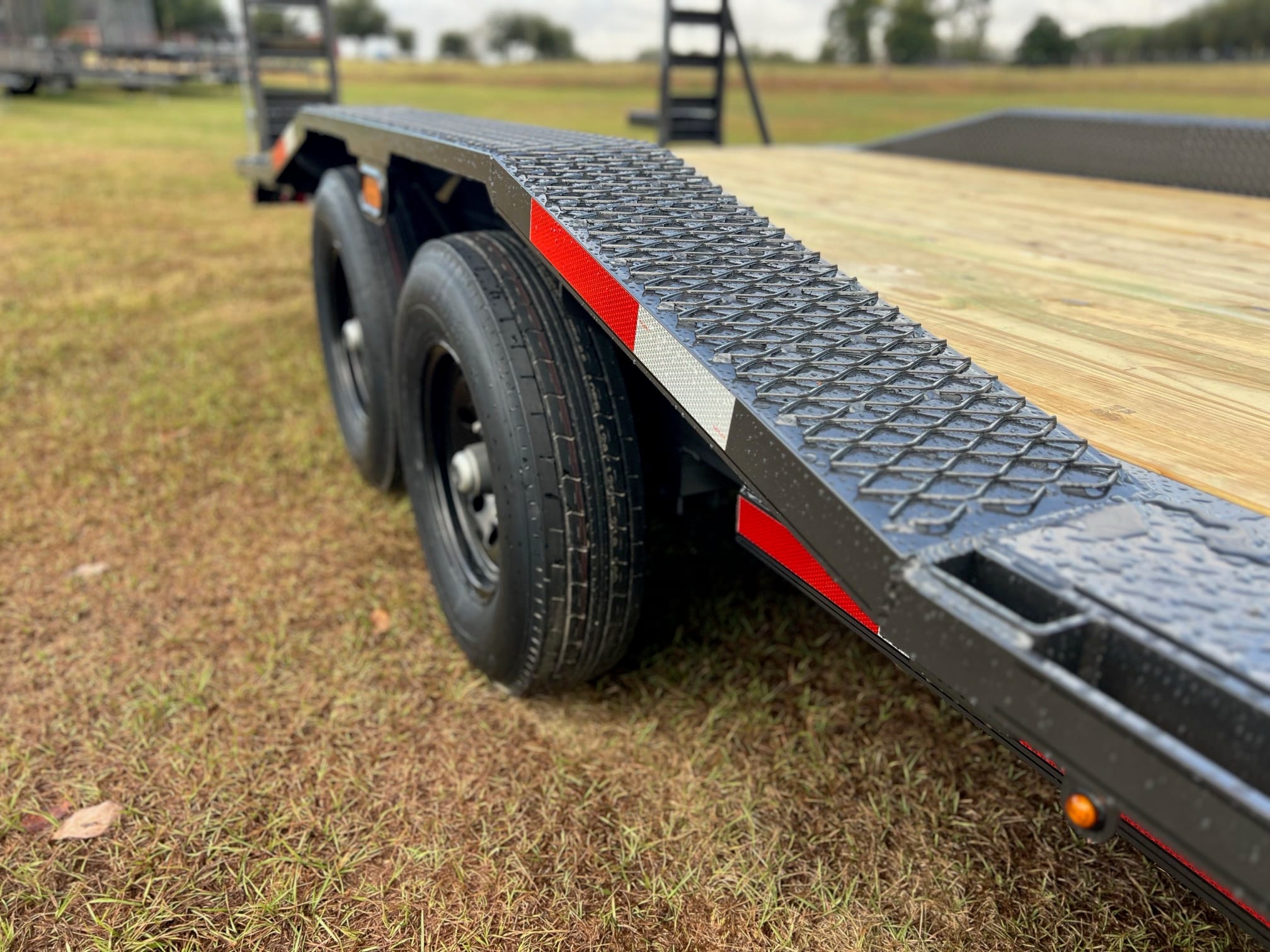

Fenders
| Standard | Available Options |
| 14GA Reinforced Tread Plate | 10" Channel Drive Over |
CROSSMEMBERS
3" Channel on 16" Centers |
Bed Width
| Standard | Available Options |
| 83" Standard Width | 102" Deck (Includes 10" Channel Drive Over Fenders) |
Neck

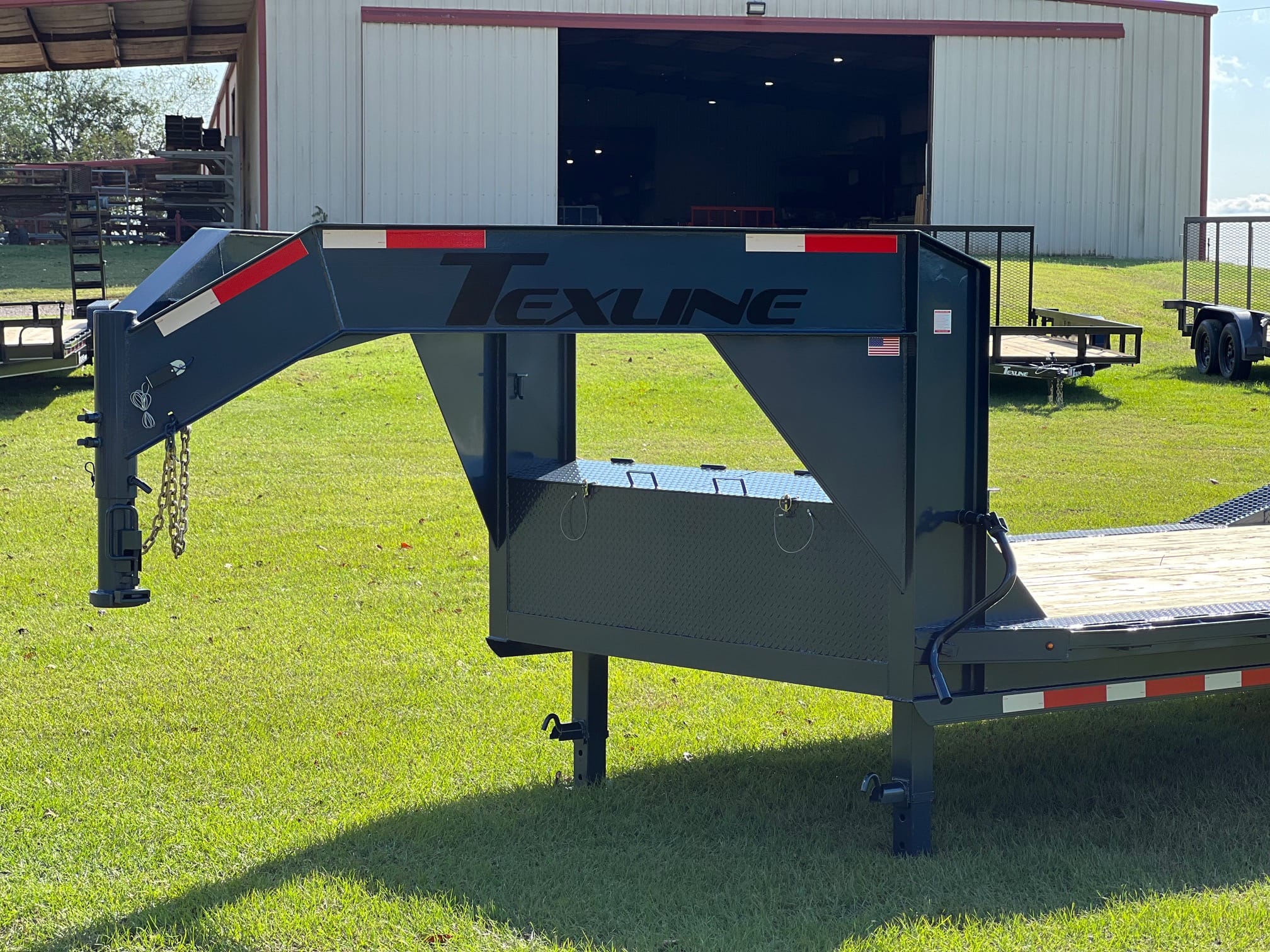

Big Box Package w/Dual Jacks Includes 12" x 14lb I-Beam |
Jack
(1) 12K Drop Leg Jack | Dual 12K Jacks | Big Box Package w/Dual Jacks Includes12" x 14lb I-BeamGooseneck Upgrade |

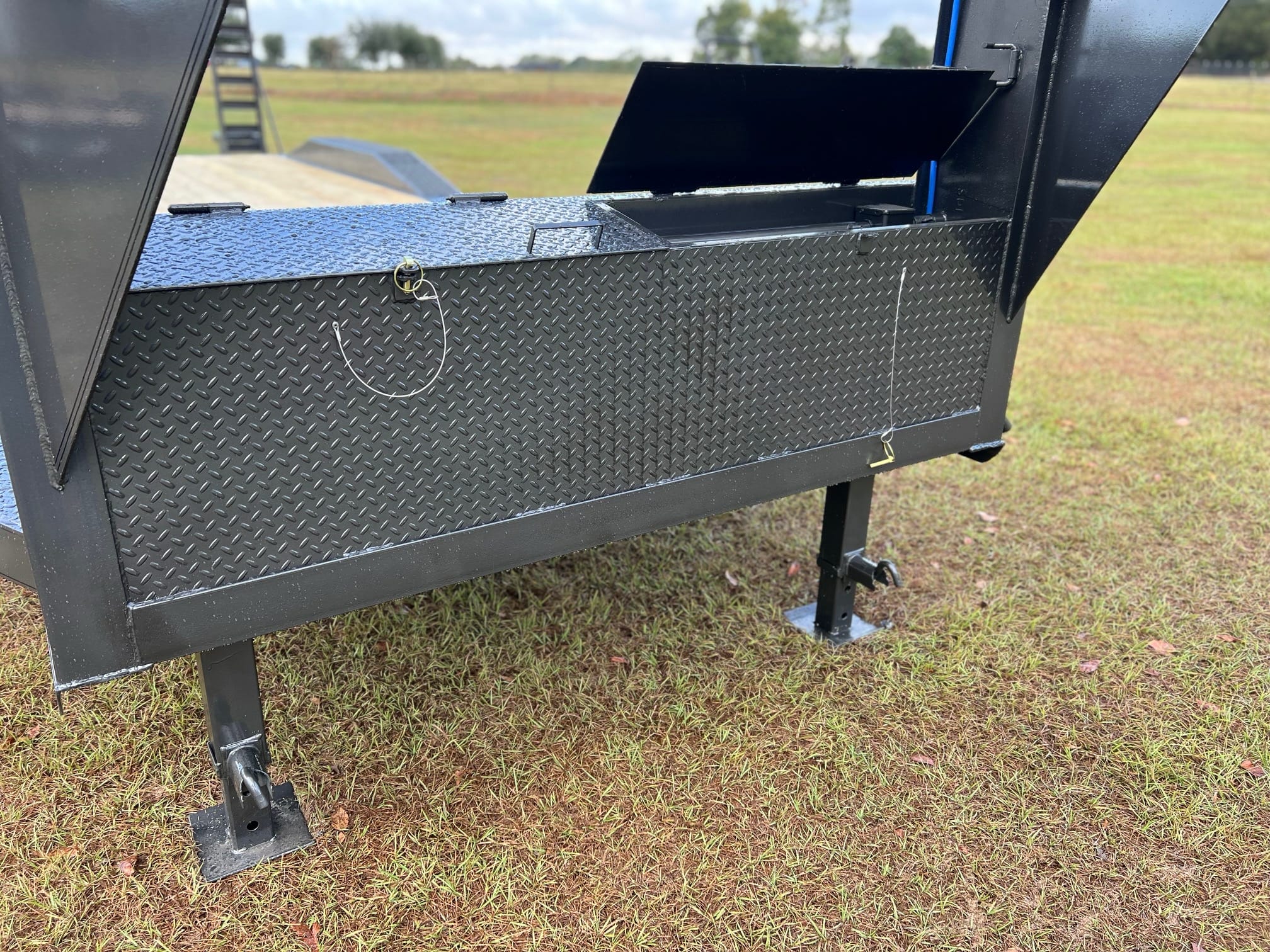

Storage
| Standard |
| Big Tool Box |

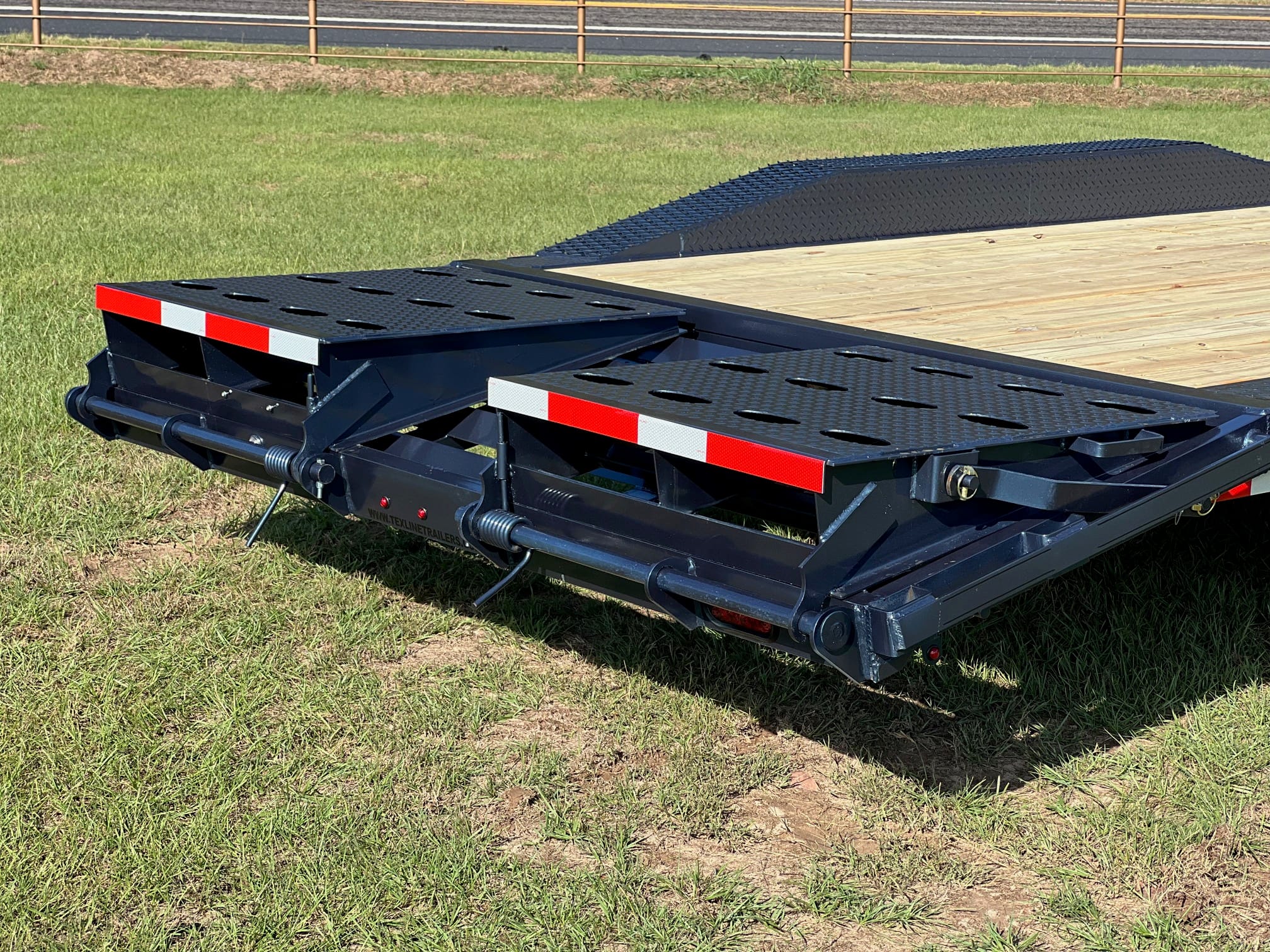

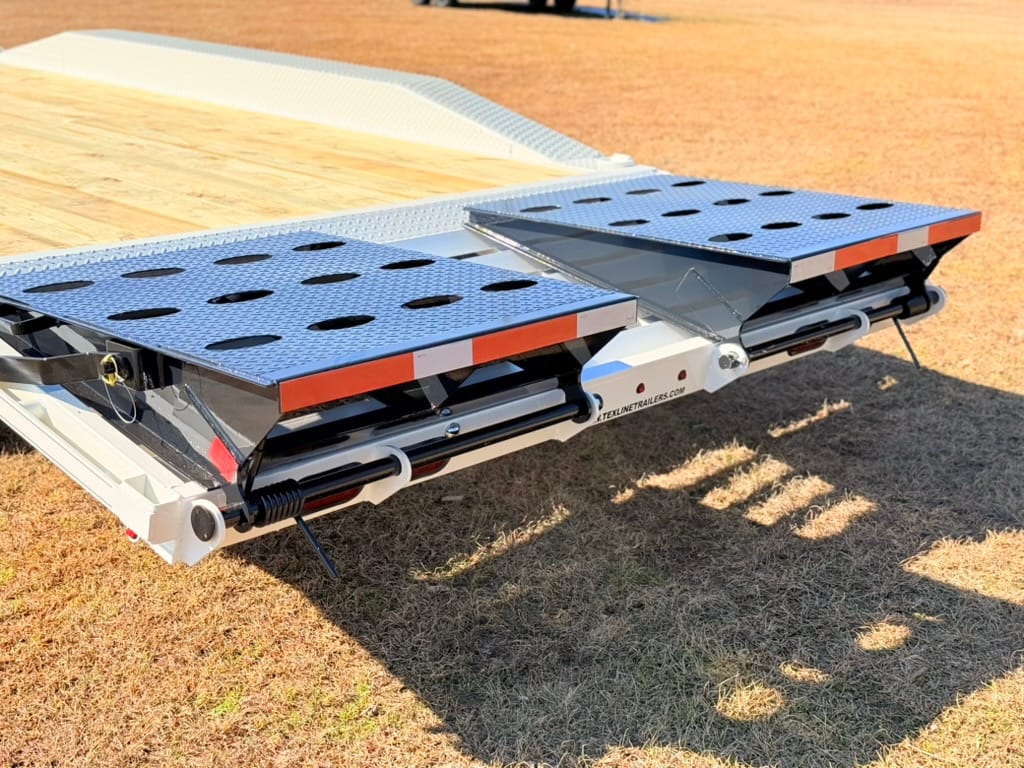

Dovetail/Ramps
| Standard | Available Options | |
DOVETAIL *No standard Feature | Rolled Dove | Steel Plate |
| Standard | Available Options | |
RAMPS Stand-Up / Slide-In Included | Rolled Dove | Steel Plate |

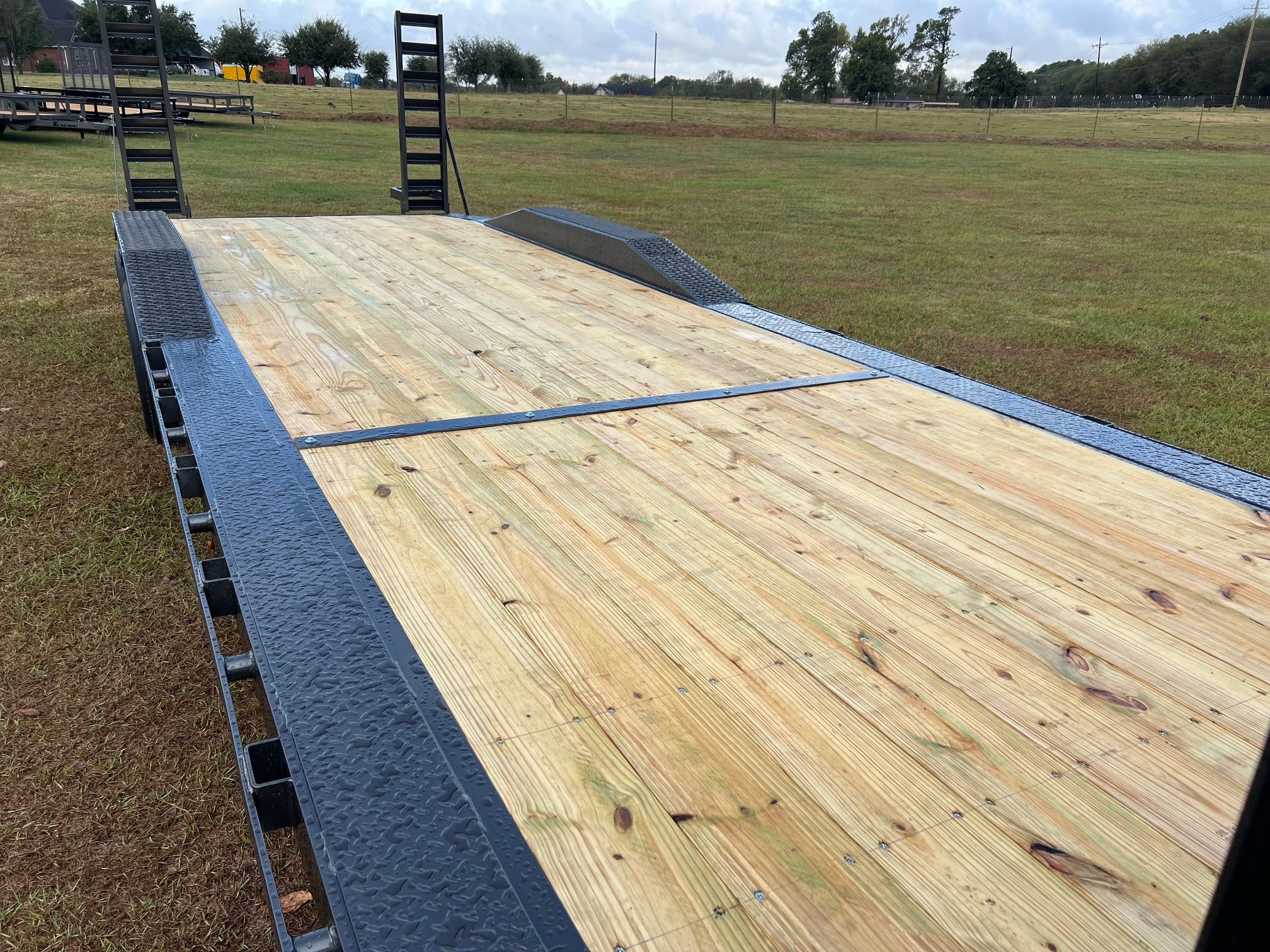

Floor
| Standard | Available Options |
| #2 Treated Pine | Steel |
Open Sides
| Available Options | ||

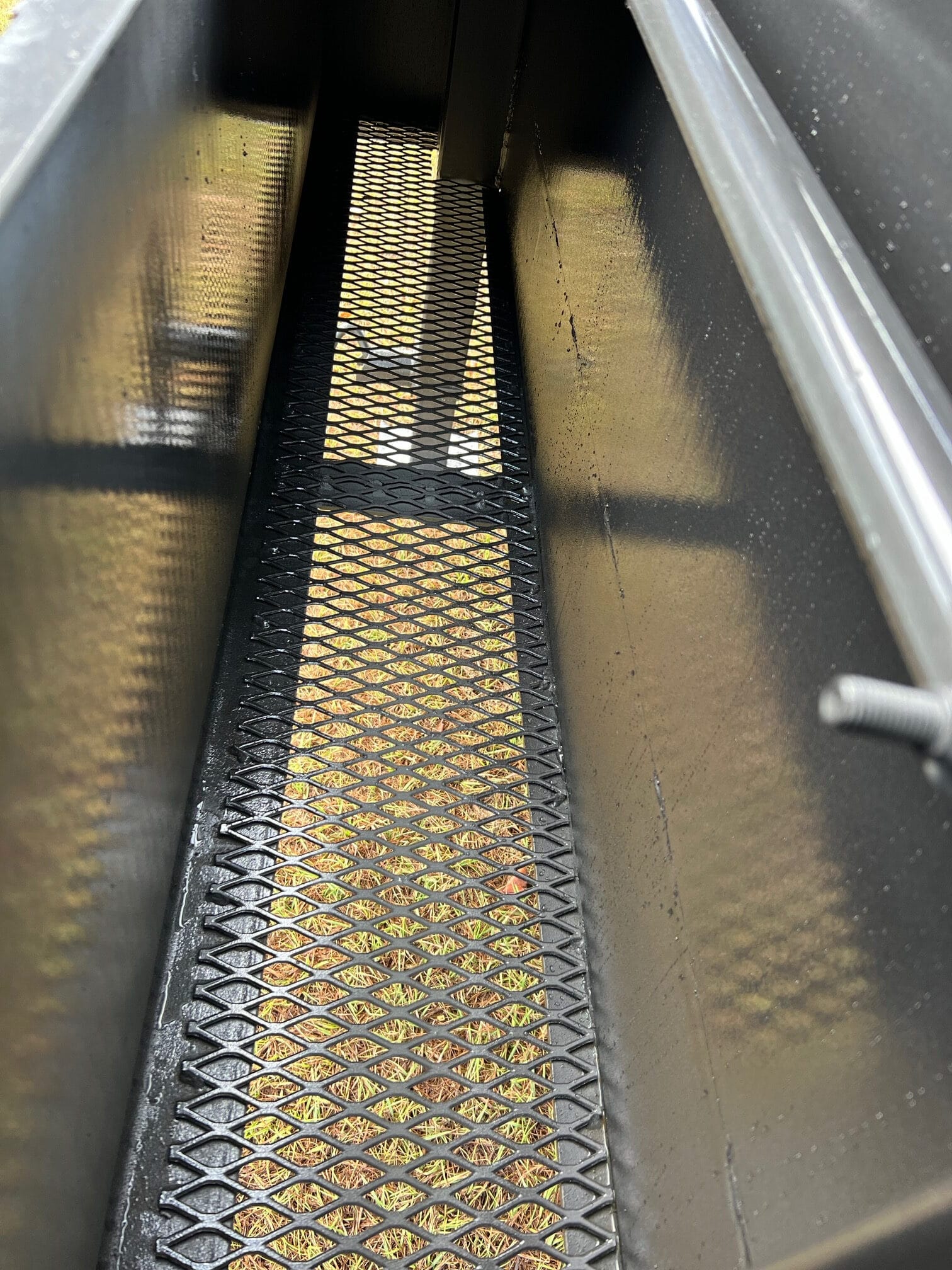

3" Pipe | *Expanded Metal Sides Available | |
Tie-Downs
| Standard | Available Options | |
| Pipe Spools/Stake Pockets on 1' Centers | Extra Pockets | Winch Plate |
| standard features | |
|---|---|
| BED WIDTH | 102" Deck (Includes 10" Channel Drive Over Fenders) |
| FRAME | 6" Channel / 8" Channel on 22'-24' |
| CROSSMEMBERS | 3" Channel on 16" Centers |

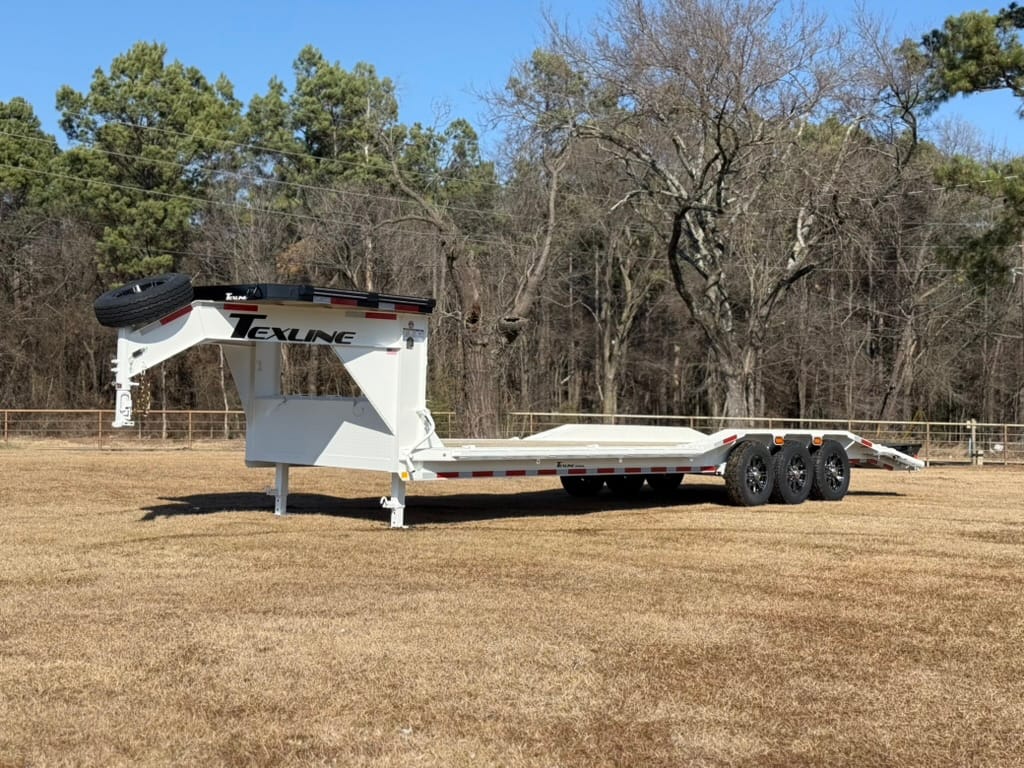

| NECK | Big Box Package w/Dual Jacks Includes 12" x 14lb I-Beam Gooseneck Upgrade |
| JACK | (1) 12K Drop Leg Jack |
| AXLES | 7,000lb EZ Lube w/2 Brakes |
| FLOORS | #2 Treated Pine |
| WHEELS | Silver/Black Option Included |
| TIRES | 230/80/R16 10PLY |

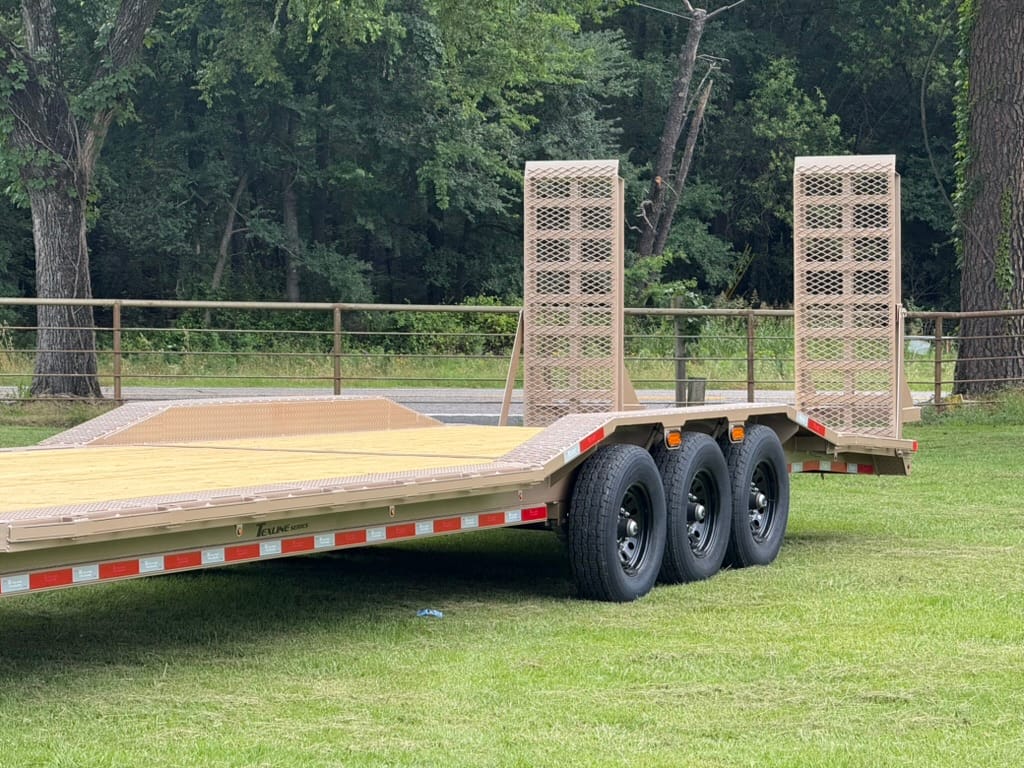

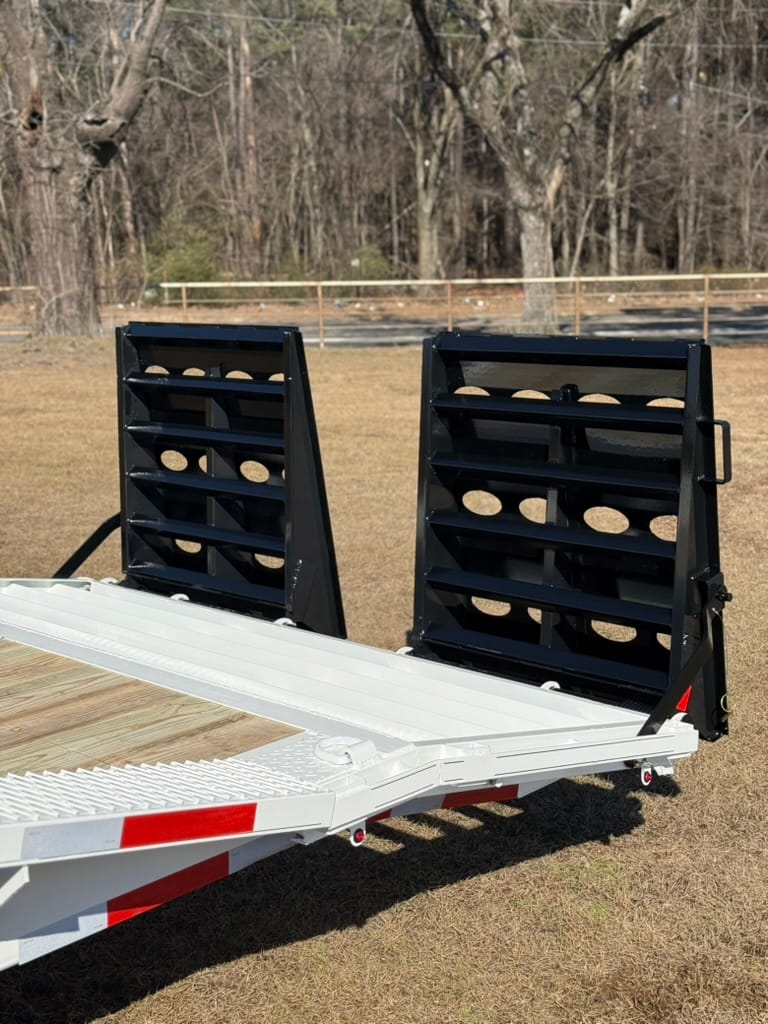

| RAMPS | Stand-Up/Slide-In Option Included |
| TIE-DOWNS | Pipe Spools/Stake Pockets on 1' Centers |
| RUB-RAIL | 3/8" Reinforced Rub-Rail |
| FENDERS | 14GA Reinforced Tread Plate |

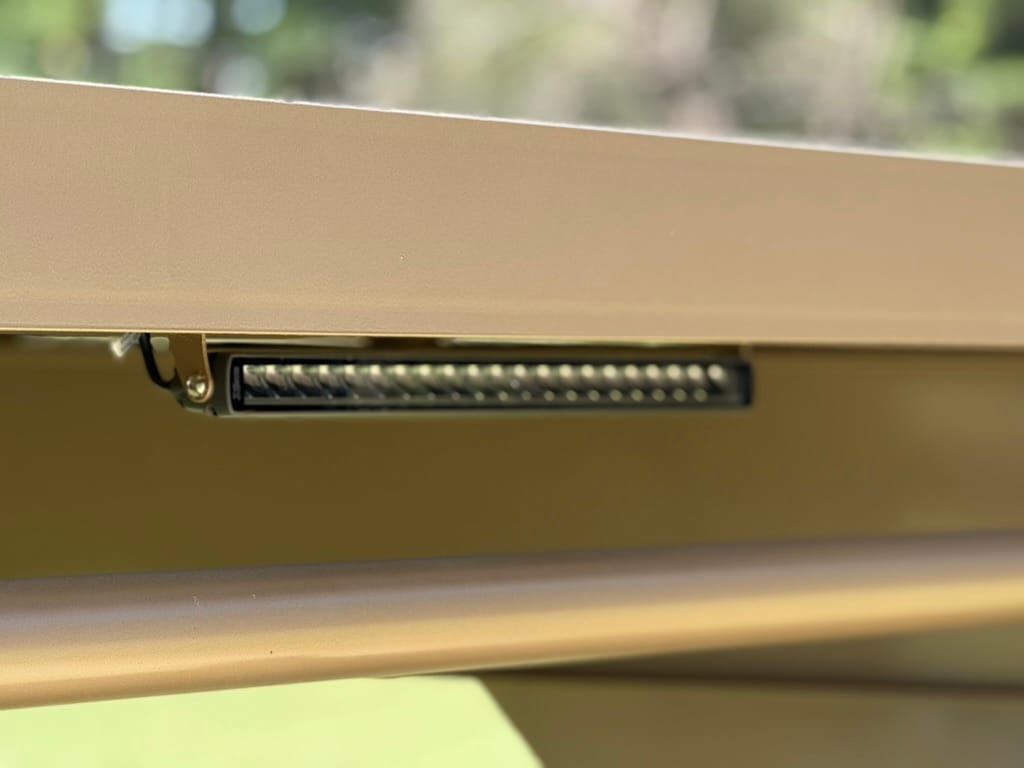

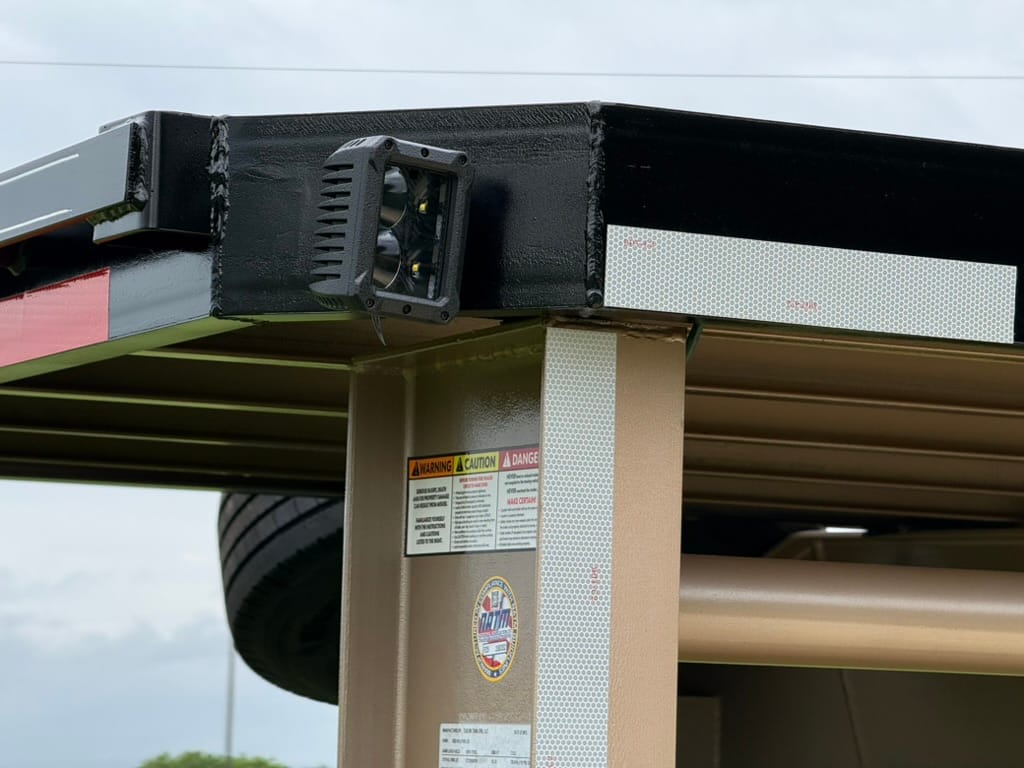

| LIGHTS | Rubber Mount LED |
| STORAGE | Tongue Mount Tool Box |
*Tex-Ramps not available on 102" x 20' option*
| available options | |||
|---|---|---|---|
| JACK | Dual 12K Jacks | ||
| AXLES | 8,000lb Hybrid Brake *Requires Tire Upgrade | ||
| FLOORS | Steel | ||
| DOVETAIL | Rolled Dove | Steel Plate | |
| TIRES | 235/80/R16 14PLY | 215/75/R17.5 18PLY | |

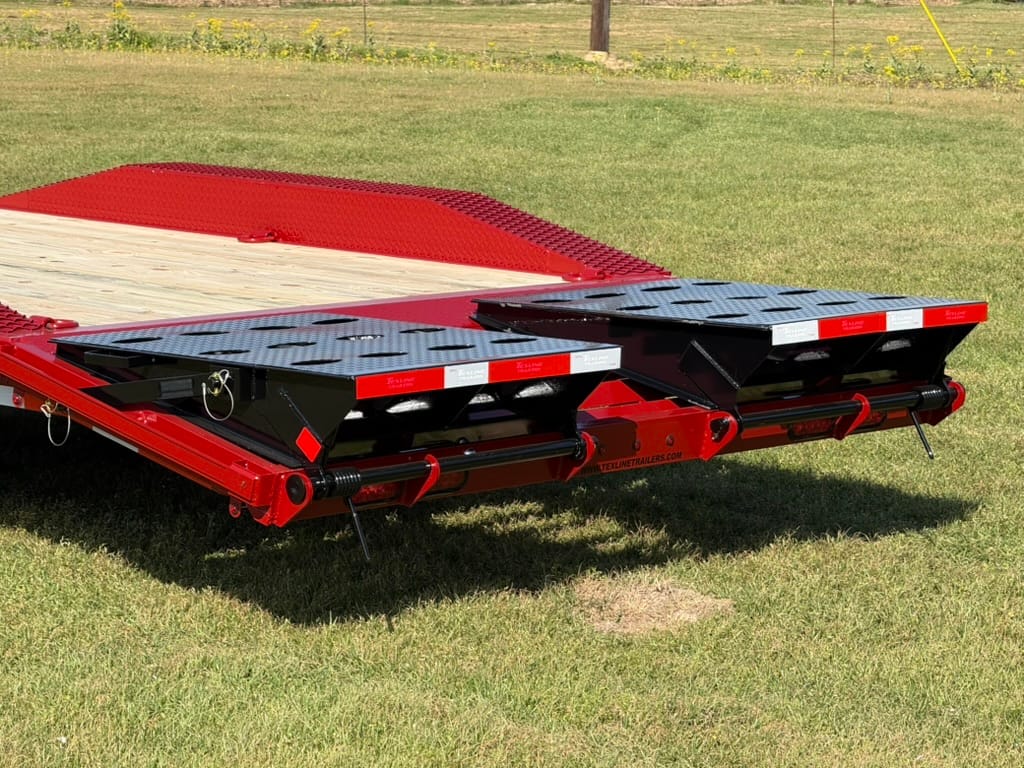

| RAMPS | Tractor Gate | 24" HD Ramps | Tex-Ramps |
| OPEN SIDES | 3" Pipe | *Expanded Metal Sides Available | |
| SPARES | 235/80/R16 10PLY | 14PLY | |
| TIE-DOWNS | Extra Pockets | Winch Plate | |
| FENDERS | 10" Channel Drive Over | ||
- 83" X 14'
- 83" X 16'
- 83" X 18'
- 83" X 20'
- 83" X 22'
- 83" X 24'
- 83" X 30'
Black
Smoked Charcoal
Industrial Gray
White
Midnight Blue
Kubota Orange
Candy Apple Red
John Deere Green
Cat Yellow
