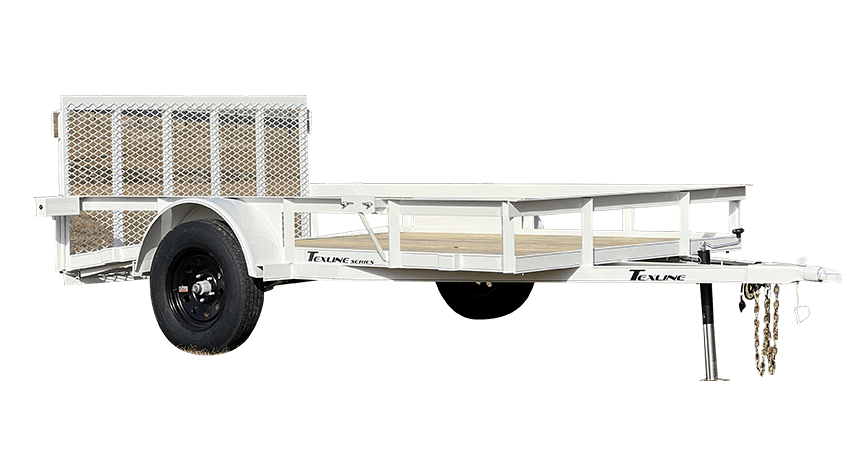

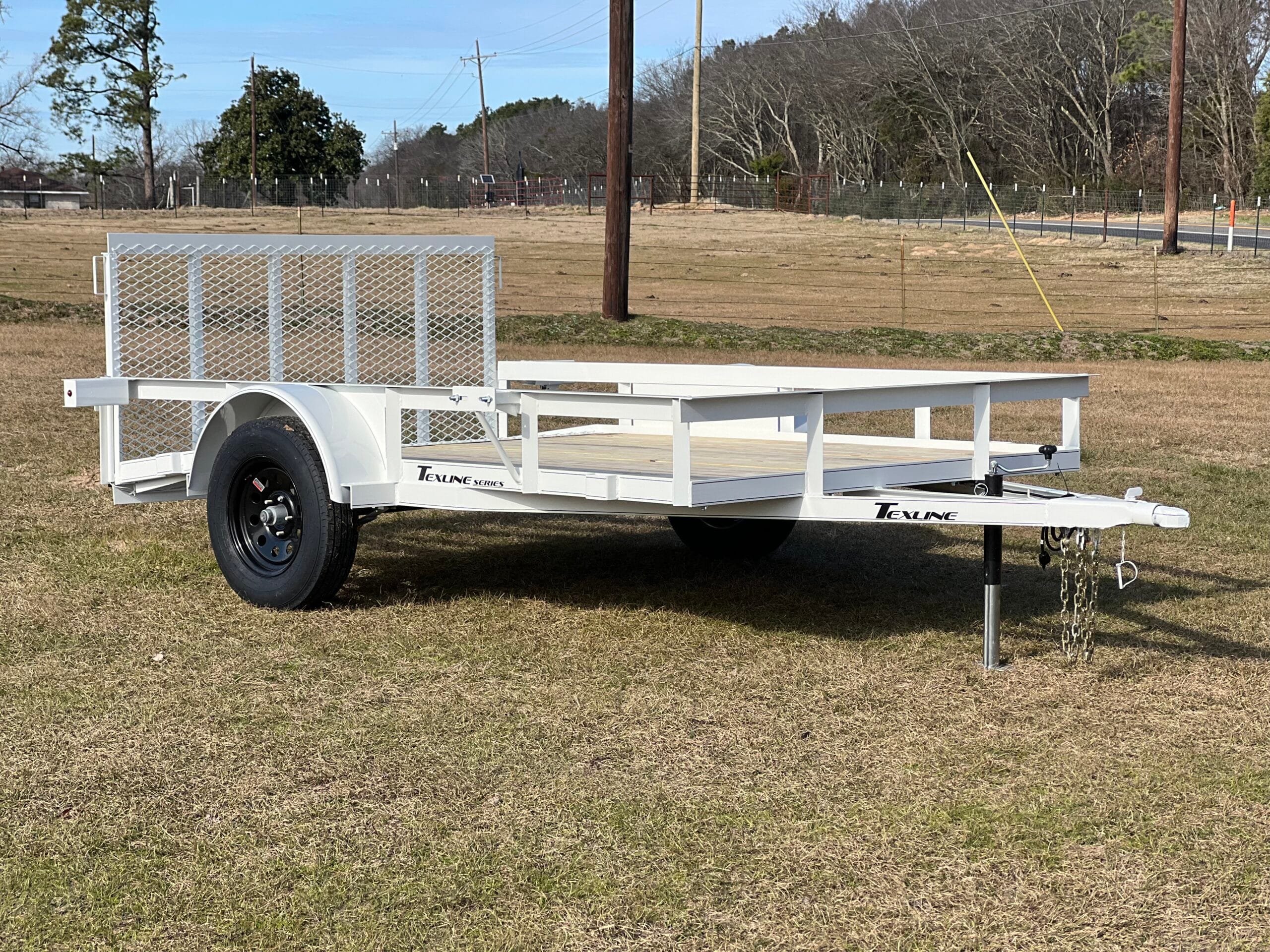

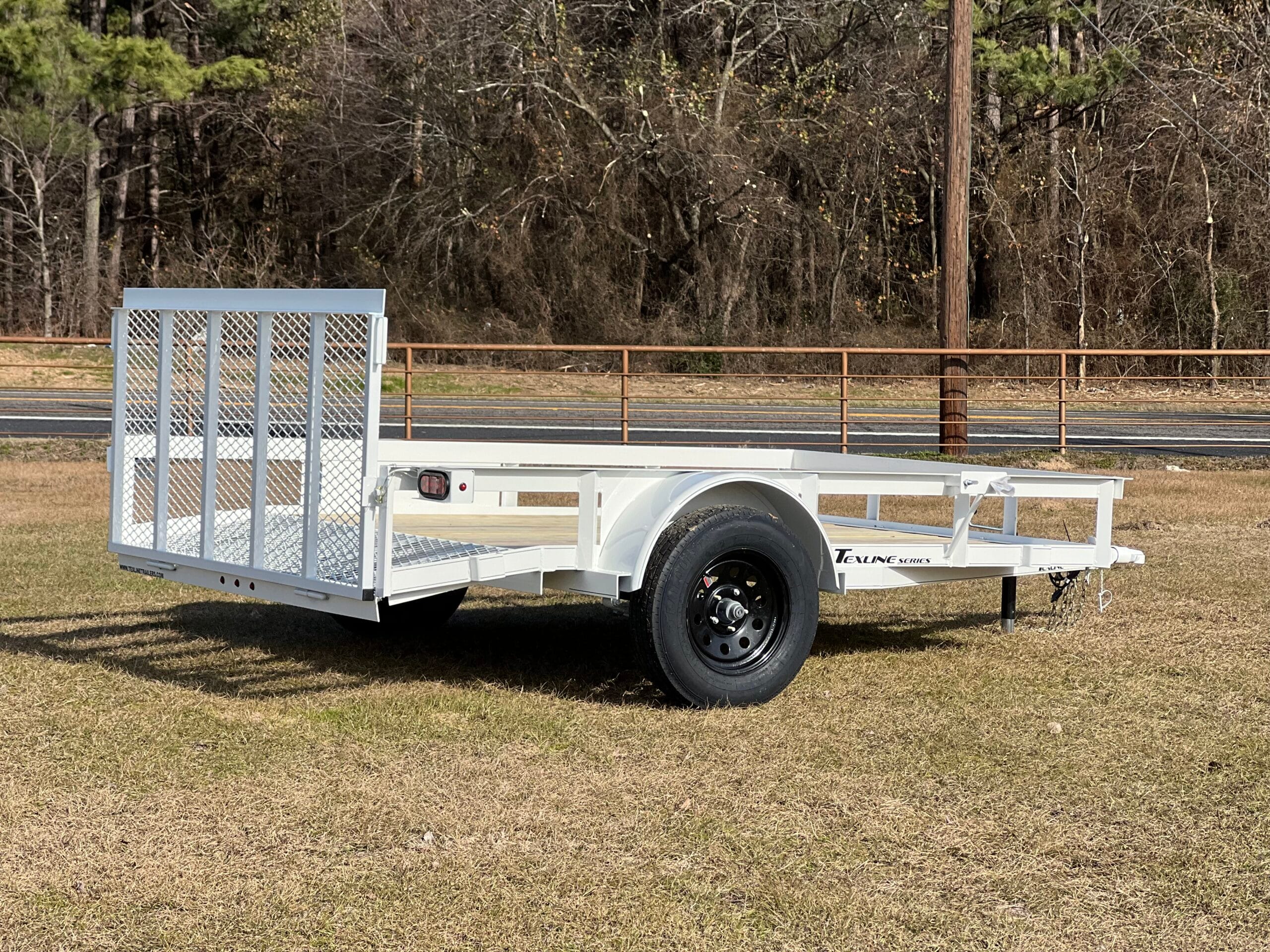

Texline Single Axle Utility
Fenders
| Standard |
Smooth |
Top-Rail
| Standard | Available Options |
|
2" x 3" x 3/16" Angle |
2 3/8" Pipe |
|
2" Sq Tubing |
Gates/Dovetails
| Standard | Available Options | ||

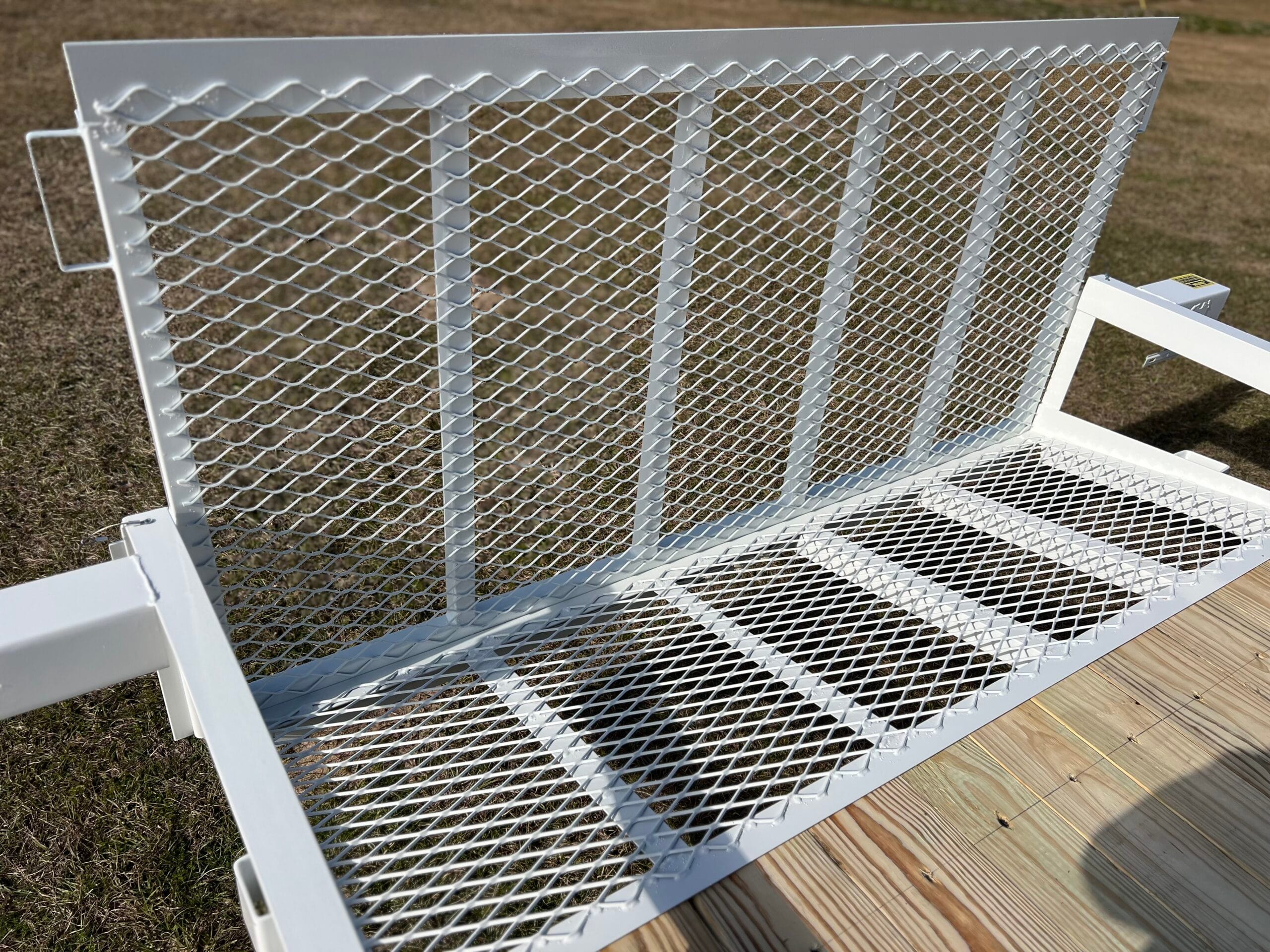

| Dovetails | 24" Mesh | 24" Steel | |

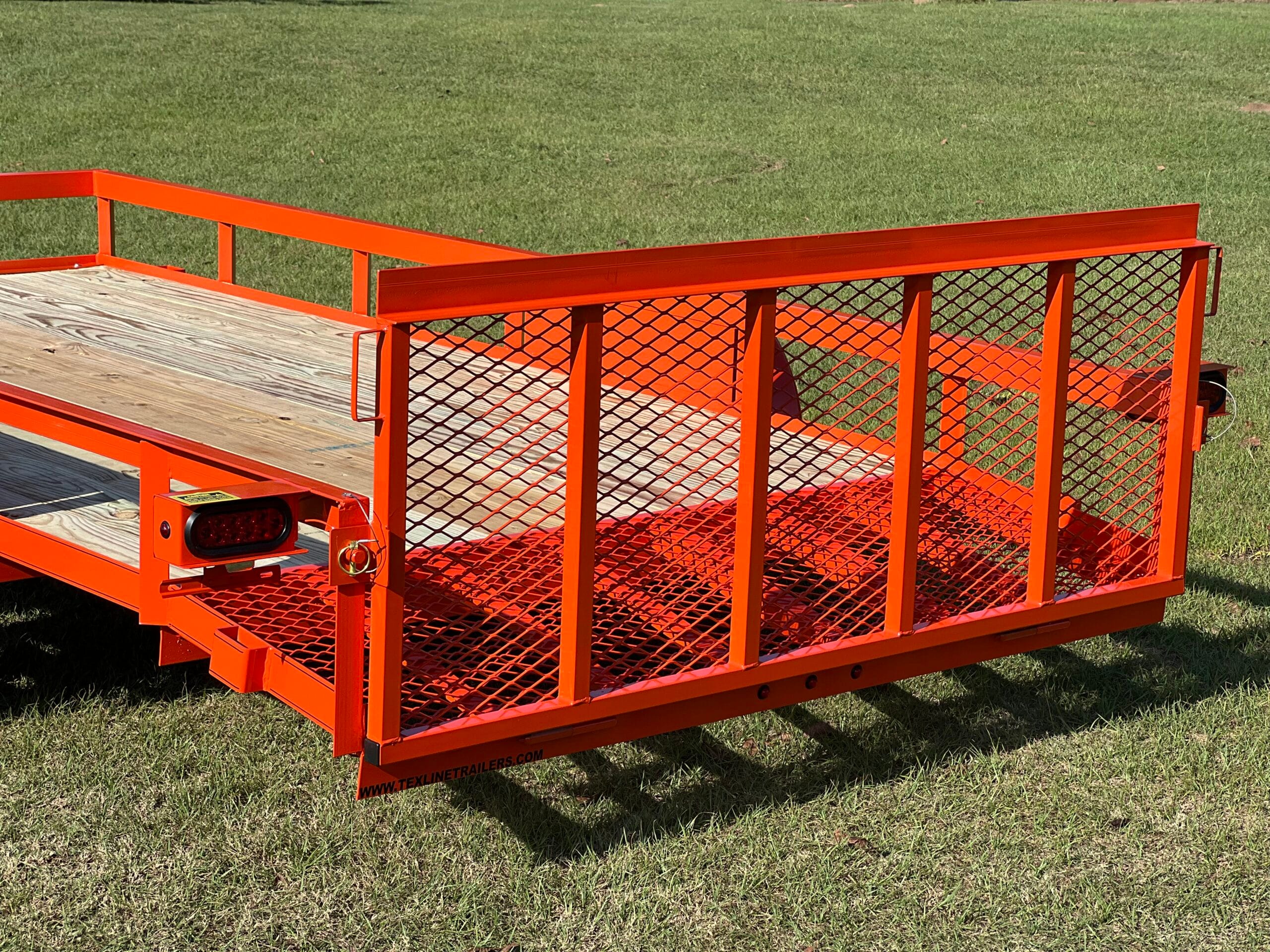

| GATES | 60" Fold Down | 77" Fold Down | 83" Fold Down |
| 60" Bi-Fold | 77" Bi-Fold | 83" Bi-Fold | |
| 60" Bi-Fold SIDE | Removable Ramp Sides (4" Channel Upgrade) | Spring Assist Any Gate | |
Open Sides
| Standard | Available Options | ||
Fender Height | 24" | 36" | 48" |
Tongue
| Standard | Available Options |
|
3" Channel Wrap |
4" Channel Wrap |
|
Extended Tongue |
Axle
| Standard | Available Options | |
| 3,500lbs Idler | 3,500lbs Brake | 5,200lbs Brake |
| Tires: 205/75/R15 | 225/75/R15 | |
Coupler
| Standard | Available Options | ||
2" RAM | 2 5/16" RAM | ||
Jack
| Standard | Available Options | ||
5K Swing Jack | 8K Drop Leg Jack | ||
Spares
| Standard | Available Options | |||

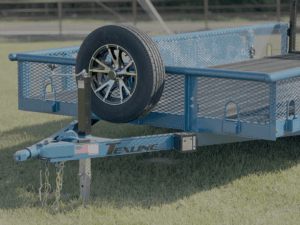

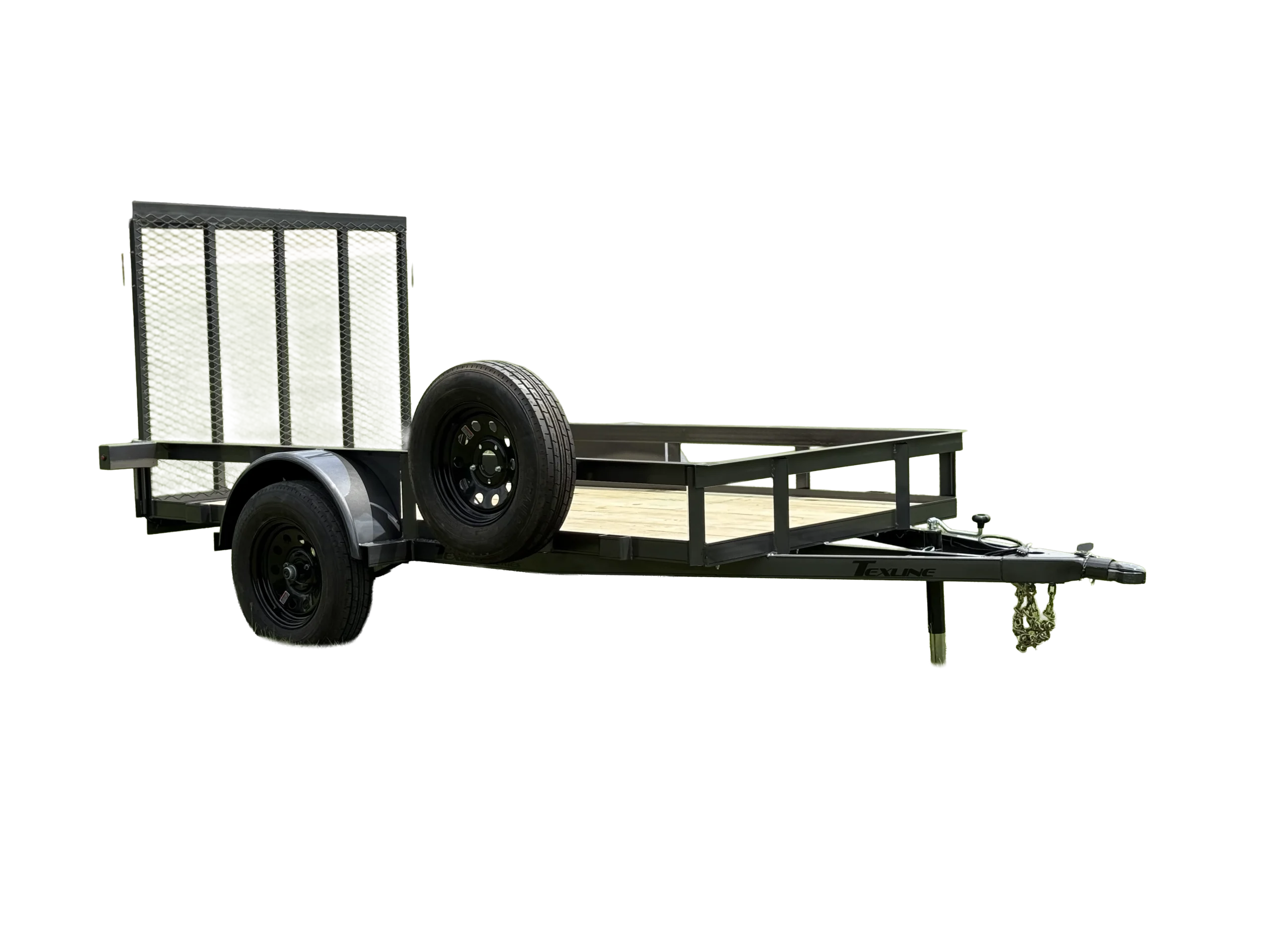

| 205/75/R15 | 225/80/R16 | 235/80/R16 | Spare Mount |
Tie-Downs
| Standard | Available Options | ||
(4) Stake Pockets | Extra Pockets | D-Rings | **Tongue Mount Toolbox |
Floor
| Standard | Available Options | ||
#2 Treated Pine | Tread Plate | ||
Lights
| Standard |
Rubber Mount LED |
Build Your Own.
You Deserve the best
- Configure Select your size, options, and finishes.
- Submit Send your custom build to a dealer.
- Connect A dealer reaches out with final pricing.
MSRP is an estimate only. Final pricing and availability will be confirmed by the dealer.
Texline Single Axle Utility
Your Build
MSRP is an estimate only. Final pricing and availability will be confirmed by the dealer.
| Standard Features | |
|---|---|
| AXLE | 3,500lbs Idler |
| FRAME | 2" x 3" x 3/16" Angle |
| Jack | 5K Swing Jack |
| TONGUE | 3" Channel Wrap |
| UPRIGHTS | 2" x 2" x 1/8" Angle |
| TOP-RAIL | 2" x 3" x 3/16" Angle |
| FENDERS | Smooth |
| OPEN SIDES | Fender Height |
| COUPLER | 2" RAM |
| WHEELS | Black/Silver |
| TIRES | 205/75/R15 |
| TIE-DOWNS | (4) Stake Pockets |
| LIGHTS | Rubber Mount LED |
| Floor | #2 Treated Pine |
*5,200lbs Axle Upgrade includes 4" x 3" x 1/4" Angle Frame, 4" Channel Tongue, and 235/80/R16 Tires.
**Top Wind Coupler Jack included on Tongue Mount Tool Box Option
| Available options | ||||
|---|---|---|---|---|
| AXLE | 3,500lbs Brake | *5,200lbs Idler | *5,200lbs Brake | |
| FRAME | Gravity Tilt | |||
| Jack | 8K Drop Leg Jack | |||
| TONGUE | 4" Channel Wrap | Extended Tongue | ||
| UPRIGHTS | 2"x 3" x 3/16" Angle | |||
| TOP-RAIL | 2 3/8" Pipe | 2" Sq Tubing | ||
| FENDERS | Tread Plate | |||
| DOVETAIL | 24" Mesh | 24" Steel | ||
| OPEN SIDES | 24' | 36' | 48' | |
| COUPLER | 2 5/16" RAM | |||
| TIRES | 225/75/R15 | |||
| GATE | 60" Fold Down 60" Bi-Fold 60" Bi-Fold SIDE | 77" Fold Down 77" Bi-Fold Removable Ramp Sides (4" Channel Upgrade) | 83" Fold Down 83" Bi-Fold Spring Assist Any Gate | |
| SPARES | 205/75/R15 | 205/75/R15 | 235/80/R16 | |
| TIE-DOWNS | Extra Pockets | D-Rings | **Tongue Mount Tool | |
| Floor | Tread Plate | |||
*5,200lbs Axle Upgrade includes 4" x 3" x 1/4" Angle Frame, 4" Channel Tongue, and 235/80/R16 Tires.
**Top Wind Coupler Jack included on Tongue Mount Tool Box Option
- 60" X 8'
- 60" X 10'
- 60" X 12'
- 60" X 14'
- 77" X 10'
- 77" X 12'
- 77" X 14'
- 83" X 12'
- 83" X 14'
Black
Smoked Charcoal
Industrial Gray
White
Midnight Blue
Kubota Orange
Candy Apple Red
John Deere Green
Cat Yellow
